Vertical Turning Lathes

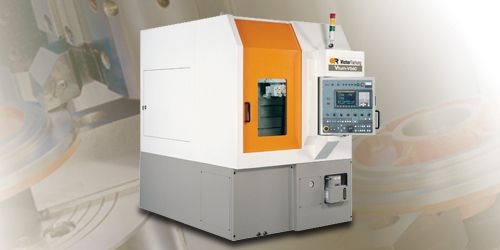

Model: Vturn-V560
Category: Machine Tools / Lathes / CNC Lathes, Vertical Type
Characteristics
Victor design one new vertical lathe Vturn-560 to meet higher roundness requirement for auto parts.
Compact space floor requirement for easier cell layout in the factory
Ergonomic design for easy loading and unloading for operators
High roundness and surface finish without gravity effect on the turning process
Integral chip disposal without coolant leakage assures clean and clear factory
Specifications
Item \ model | Unit | Vturn-V560 (CV) | |
---|---|---|---|
Capacity | Swing over bed | mm | 600 |
Swing over carriage | mm | 540 | |
Max. turning length | mm | 520 | |
Std. turning dia. | mm | 470 | |
Travel | X axis stroke | mm | 280+130 |
Z axis stroke | mm | 540 | |
Spindle | Max. spindle speed | rpm | 2500 |
Spindle nose | mm | A2-8 | |
Spindle bore | mm | 86 | |
Inner bearing | mm | 130 | |
Chuck diameter | inch | 12" (Opt. 10"/15"/18") | |
Max. part weight (incl. chuck) | kg | 593 | |
Turret | No. of tools | no. | 8 |
No. of live tools (opt.) | no. | 8 (VDI-40) (DIN-5482, axial type, left-hand) |
|
Tool shank size | mm | 32 | |
Max. boring bar dia. | mm | 50 | |
Exchange time | sec. | 1 (hydraulic) | |
Feedrate | Rapid feedrate | m/min | X/Z = 15/24 |
X axis ballscrew | mm | Ø50 x P10 (moving column) | |
Z axis ballscrew | mm | Ø40 x P12 | |
Cutting federate | mm/min | X/Z=0~1260 | |
Motor | Spindle motor | kW | 15/18.5 (αP30i) Opt. 18.5/22 (αP40i) |
Gearbox | Optional | ||
X/Z axis servo motor | kW | X:4, Z:4 | |
Milling motor (opt.) | kW | 4 kW | |
Machine | Fanuc controller | 0i-T | |
Coolant tank | Liter | 185 | |
W × L × H (including chip conveyor) | mm | 1560 × 3250 × 2918 | |
Power requirement | kVA | 40 (45 for CV) | |
Net weight | kg | 6000 |
Standard accessories:
- Solid chuck with soft jaws
- Chip conveyor with cart
- Automatic forced lubrication
- Fully enclosed splash guarding
- Tool holders (exch VDI tooling)
- 3 step warning light
- Fanuc 0i-T control
- Remote MPG (handwheel)
- Oil cooler for gearbox (Vturn-V760)
Optional accessories:
- Bigger chucks (21" chuck/1700rpm, 24" chuck/1400rpm, 28" chuck/1200rpm, 32" chuck/1100rpm)
- Oil skimmer
- Bigger spindle motor
- Renishaw tool presetter (detachable)
- High pressure coolant
- Auto door
- VDI turret
- C axis and VDI turret
- Higher column (100mm more)
- Fanuc 21i-T /18i-T control
- Higher outlet chip conveyor (for Vturn-V560)
- Detachable chip conveyor (to reduce the floor space when cleaning)
