Horizontal Machining Centers

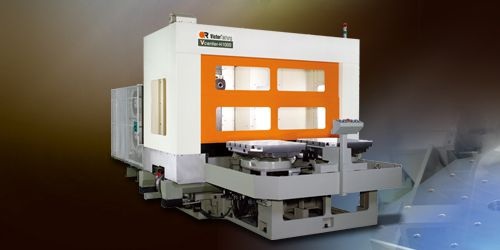

Model: Vcenter-H630/H1000
Category: Machine Tools / Machining Centers / Machining Centers, Horizontal
Characteristics
As with all Victor Taichung machine tools, Vcenter-H630/H1000 have been designed with the concept of reliability and stability foremost. Emphasis has been placed on continuous cutting ability in selecting machine structure and components. From the bed ribbing to machine assembly, Victor Taichung employs over 55 years experience in machine tool building to ensure machine down-time is kept to a minimum.
Specifications
| ITEM | Unit | Vcenter-H630 | Vcenter-H1000 | |
|---|---|---|---|---|
| CAPACITY | X axis travel | mm | 900 | 1350 |
| Y axis travel | mm | 800 | 1050 | |
| Z axis travel | mm | 710 | 1050 | |
| DISTANCE | Spindle nose to table center | mm | 200 - 910 | 220 - 1270 |
| Spindle center to table surface | mm | 0 - 800 | 0 - 1050 | |
| Max. machining area (W x L x H) | mm | 875 x ø1075 x 800 | 1350 x ø1360 x 1350 | |
| WORKING TABLE | Table work area | mm | 630 x 630 | 1000 x 1000 |
| Max. table load | kg | 1000 | 2000 | |
| T-slot dimensions | mm | M16 x P2.0 | M16 x P2.0 | |
| Min. angle of rotation | deg | 1° (opt. 5° & 0.001°) | 1° (opt. 5° & 0.001°) | |
| Table interchange time | sec | 30 (P-P) | 45 (P-P) | |
| Table interchange method | 2 pallet - parallel changer | 2 pallet - parallel changer | ||
| Time to inde x 90° | sec |
5 (2 for opt. CNC table) |
8 (4 for opt. CNC table) |
|
| Time to inde x 180° | sec |
7 (3 for opt. CNC table) |
10 (5 for opt. CNC table) |
|
| SPINDLE | Spindle taper | BT 50 | BT 50 | |
| Spindle speed | rpm | 4500 (opt. 6000) | 4500 | |
| Spindle bearing diameter | mm | ø100 | ø100 | |
| AXES FEED | Rapid feed rate - X / Y / Z | m/min | 20 / 20 / 15 |
15 / 15 / 15 (opt. 20/20/15) |
| Cutting feedrate - X / Y / Z | mm/min | 10000 | 10000 | |
| Ballscrew øD x P (pitch) | mm | ø50 x P12 | ø55 x P10 | |
| Boxway hordness | HRC 55 ± 3 | HRC 55 ± 3 | ||
| ATC | Tool capacity | 60 (opt. 90, 120) | 90 (opt. 120) | |
| Tool selection | Fixed tool pot number | Fixed tool pot number | ||
| Max. tool diameter | mm | 110 (245 with no adj. tool) | 110 (245 with no adj. tool) | |
| Max. tool length | mm | 600 | 600 | |
| Max. tool weight | kg | 20 | 20 | |
| Tool exchange time | sec. | 13.8 (T-T), 15.6 (C-C) | 13.8 (T-T), 20.5 (C-C) | |
| Tool pull - stud | BT50 - 60° | BT50 - 60° | ||
| MOTOR | Spindle motor (cont / 30 min) | kW | 15 / 18.5 (opt. 18.5 / 22) | 18.5 / 22 |
| X/Y/Z axis feed motor | kW | 4 / 7 / 4 | 9 / 9 / 9 | |
| B axis feed motor | kW | 1.6 (4 for opt. CNC table) | 4 (opt. 7) | |
| Hydraulic / lubrication motor | kW | 2.2 / 0.02 | 2.2 / 0.02 | |
| MACHINE | Standard CNC controller | Fanuc 21i-MB | Fanuc 21i-MB | |
| Power requirement | KVA | 40 (50 with CTS) | 54 (60 with CTS) | |
| Coolant tank | L | 500 | 600 | |
| Machine height | mm | 3200 | 3950 | |
| Floor space requirement | mm | 3435 x 5255 | 4580 x 8400 | |
| Machine weight | kg | 17000 | 31420 |
※Specifications are subject to change without notice for design improvement.
Standard accessories:
- 1˚ indexing table
- Spindle coolant unit
- Coolant tank
- Rigid tapping
- Manual pulse generator (remote type)
- Hand tools and tool box
- Scroll type chip remover
- Built-in work lamp
- Programming end light
- Leveling block
- Automatic pallet changer with manual turning device
- Spindle load meter
- Oil skimmer
- 21i-MB control
- Air conditioner for electrical cabinet
- Chip conveyor
- Handy coolant gun
Optional accessories:
- 90, 120 tool magazine
- Fully enclosed splash guarding
- T-slot pallet
- CNC table with 0.001˚ continuous indexing
- Linear encoder feedback (std. for Vc-H1000)
- Interface for FMS
- Coolant through spindle
- Table shower system
- Air blow system
- a18i spindle motor (for Vc-H630)
- Auto tool length measurement
- FMC with total 6 pallets and RGV
- 18i-MB control
- Heidenhain controller iTNC-530
