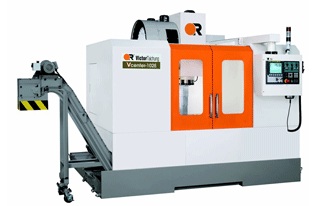

Model: Vcenter-102E

Category: Machine Tools / Machining Centers / Machining Centers, Vertical

Arm-type ATC
Japanese-made linear motion guideways
Meehanite® casting
Victor Taichung's own spindle

Item \ Model		Units	Vcenter-102E
Travel	X axis travel	mm	1020
	Y axis travel	mm	600
	Z axis travel	mm	560
Distance	Spindle center to column	mm	600
Distance	Spindle nose to table surface	mm	150 ~ 710
Table	Table work area	mm	1100 x 510
	Dimension of T-slot	mm	5 x 18 x 100
	Max. table load	kg	750
Spindle	Spindle taper		BT-40
	Spindle motor - cont / 30 / 10min	kW	11/15
	Spindle speed	rpm	8000
Feed rate	Rapid feed rate - X / Y / Z	m/min	24 / 24 / 20
	Axis feed motor - X / Y / Z	kW	2.5 / 2.5 / 2.5
	Cutting feedrate by table	m/min	7.5
	X/Y ballscrew (dia. x pitch)	mm	40 x P12
	Z ballscrew	mm	40 x P10
Tools	Max. tool length	mm	250
	Max. tool weight	kg	7
	Magazine capacity		24 (Round)
	Max. tool diameter (without adjacent tools)	mm	80
	Tool exchange time	sec.	3.5
	Pull stud angle	deg.	90 (opt. 45)
	Tool selection method		Random
Machine	Power requirement	kVA	30
	Min/Max. air pressure	kg/cm²	5.5 ~ 6.5
	Coolant tank capacity	L.	280
	Std. NC controller		FANUC 0iMate-MD
	Floor space requirement	mm	2750 x 2485
	Max. machine height	mm	2640
	Net weight	kg	6100

※Machine and controller specifications are subject to change without notice.
