Vertical Turning Lathes

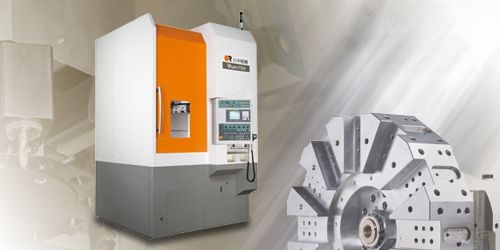

Model: Vturn-V760
Category: Machine Tools / Lathes / CNC Lathes, Vertical Type
Characteristics
With a maximum turning diameter of 760mm and a swing of 900mm the Vturn-V760 meets the increasing demands for large size and/or heavy part turning. The standard Fanuc αP40i wide range motor along with ZF gearbox provide high torque at extremely low spindle speeds.
Specifications
| Item \ model | Unit | Vturn-V760 (CV) | |
|---|---|---|---|
| Capacity | Swing over bed | mm | 900 |
| Swing over carriage | mm | 650 | |
| Max. turning length | mm | 760 | |
| Std. turning dia. | mm | 630 | |
| Travel | X axis stroke | mm | 380+40 (380+30 for CV) |
| Z axis stroke | mm | 780 | |
| Spindle | Max. spindle speed | rpm | 2000 |
| Spindle nose | mm | A2-11 | |
| Spindle bore | mm | 105 | |
| Inner bearing | mm | 160 | |
| Chuck diameter | inch | 18"(Opt. 15"/21"/24"/28"/32") | |
| Max. part weight (incl. chuck) | kg | 1160 | |
| Turret | No. of tools | no. | 12 |
| No. of live tools (opt.) | no. |
12 (VDI-50) (DIN-5480, radial type, left-hand) |
|
| Tool shank size | mm | 32 | |
| Max. boring bar dia. | mm | 60 (opt. 63) | |
| Exchange time | sec. | 1 (hydraulic) | |
| Feedrate | Rapid feedrate | m/min | X/Z = 20/20 |
| X axis ballscrew | mm | Ø40 x P10 | |
| Z axis ballscrew | mm | Ø50 x P10 | |
| Cutting federate | mm/min | X/Z=0~1260 | |
| Motor | Spindle motor | kW |
18.5/22 (αP40i) Opt. 30/37 (α30i) |
| Gearbox | ZF gearbox (STD) | ||
| X/Z axis servo motor | kW | X:4, Z:7 | |
| Milling motor (opt.) | kW | 7 kW | |
| Machine | Fanuc controller | 0i-T | |
| Coolant tank | Liter | 300 | |
| W × L × H (including chip conveyor) | mm | 2032 × 3915 × 3400 | |
| Power requirement | kVA | 72 (88 for CV) | |
| Net weight | kg | 10000 |
Standard accessories:
- Solid chuck with soft jaws
- Chip conveyor with cart
- Automatic forced lubrication
- Fully enclosed splash guarding
- Tool holders (exch VDI tooling)
- 3 step warning light
- Fanuc 0i-T control
- Remote MPG (handwheel)
- Oil cooler for gearbox (Vturn-V760)
Optional accessories:
- Bigger chucks (21" chuck/1700rpm, 24" chuck/1400rpm, 28" chuck/1200rpm, 32" chuck/1100rpm)
- Oil skimmer
- Bigger spindle motor
- Renishaw tool presetter (detachable)
- High pressure coolant
- Auto door
- VDI turret
- C axis and VDI turret
- Higher column (100mm more)
- Fanuc 21i-T /18i-T control
- Higher outlet chip conveyor (for Vturn-V560)
- Detachable chip conveyor (to reduce the floor space when cleaning)
