Ha-VIS preLink®

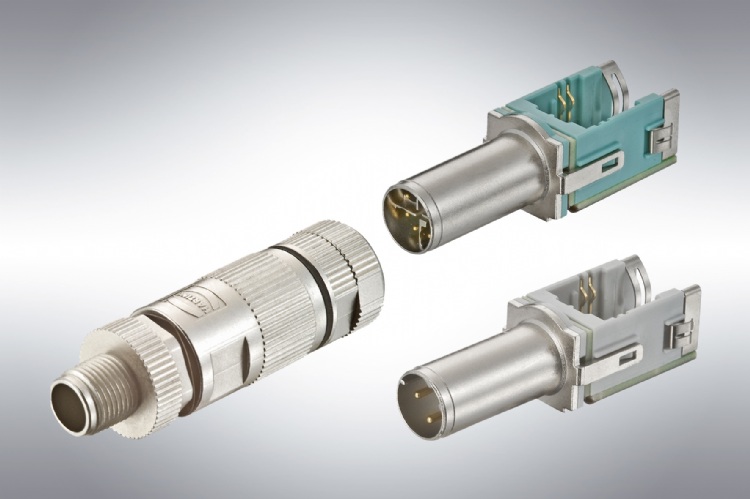

Model: Robust M12 connector modules for up to 10 Gbit

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Connectors



Online Inquiry





Characteristics



The successful Ha-VIS preLink® technology from HARTING is taking further components on board. Whatever a particular application requires, a connector module can be fitted into the recently developed, universal M12 housing. Possible types are a D-coded version for 4-core data cables with transfer rates of up to 100 Mbit or a variant with X-coding for 8-core data cables, suitable for 10 Gbit.

Among the special features of innovative preLink® connection technology is a termination block, which is connected to the individual cores of the particular data cable via internal, innovative insulation displacement terminations, which remain stable over time and are vibration-proof. The cable assembled in this way is attached securely to the connector by means of the spring contacts fitted in the module, enabling the stringent shock and vibration standards of railway standard DIN EN 50155 to be met.

In addition, the module is designed with a shielding spring which creates a reliable contact between the cable screening and the metallic M12 housing. A set of seals with slotted seals completes the scope of delivery.
