connectors ideally suited for potentially explosive areas

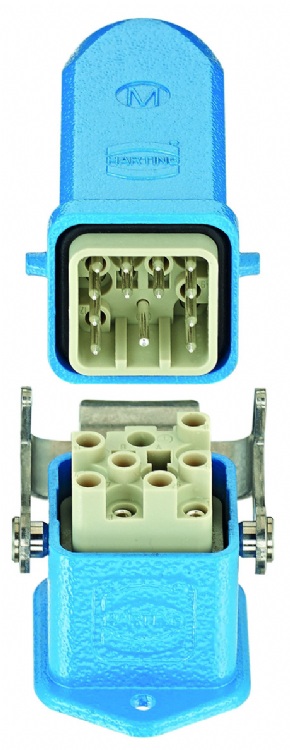

Model: Han® Ex
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Connectors
Characteristics
The connectors are designed to meet the intrinsic safety requirements of the ignition protection class and can therefore be used in explosion-hazard areas 1 and 2. In intrinsically safe circuits, energy is limited in such a manner that even a potential spark cannot ignite an explosive environment.
The Han® Ex product portfolio offers complete connector systems consisting of housings and inserts. The housing‘s alloy was selected so that it can be used in pulverized methane-coal dust atmospheres.
Furthermore, they offer IP protection class 65 in mated condition. The housing’s blue color indicates that an intrinsically safe circuit is present. The contact inserts provide a high number of pins and meet the standards of the ignition protection class even in the tightest of spaces.
The termination technology is the patented Han-Quick Lock® technology.
This allows time-saving and easy assembly without special tools. The reliable and vibration-proof contacting provides maximum safety even in demanding applications. Moreover, the proven crimp technology can also be selected as the termination method, with cross-sections of 0.14 to 2.5mm2 able to be connected.
