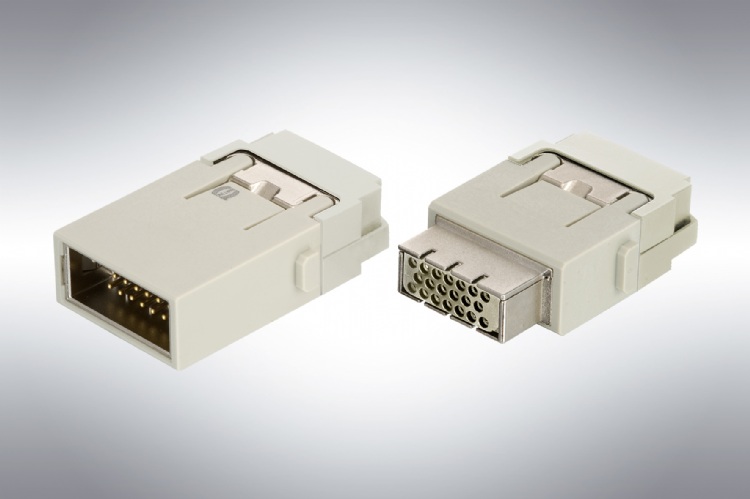

Han®Shielded Module
Model: For shielded signals
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Connectors
Characteristics
The new Han® Shielded Module is now available for the HARTING technology group’s Han-Modular® series. This is specifically intended for applications in which shielded signal cables are to be designed to function free of interference and to mate securely. A special hallmark of the system is the fact that up to 20 shielded signal contacts can be connected with a minimum space requirement. The perfect metallic shielding reduces to zero any interference from directly adjacent power modules. Specifically in applications with frequency converters, the power cables can often transfer interference to signal cables. With the new shielded Han® Shielded Module, the signal contacts are now shielded against any such adverse effects. This now enables power and signal modules to be transferred in a connector without interference and securely, even in extreme electrical signal conditions.
Specifications
Technical details:
- 20 shielded contacts
- Cable cross sections between 0.14 and 0.5 mm²
- Crimp connection technology
- Simple assembly
- Ideal for the transfer of very sensitive signals
The Han-Modular® series, as an open connector system, is capable of especially flexible adjustment to individual user requirements. It offers users the freedom to assemble their ‘own personal’ connectors in the desired configuration. The range of now 40 modules for electrical, optical and gaseous signals is being continually expanded, enabling more and more new configurations.
