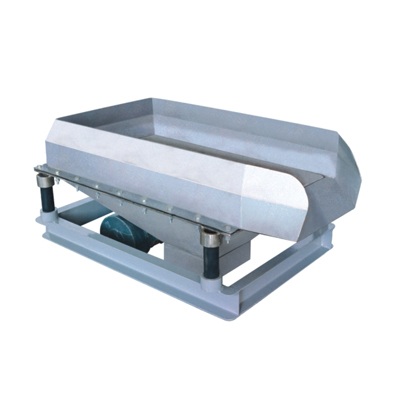

Rectangular Vibration Separator
Model: GY-400E~800E
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
This machine is ideally for sieving and separating powder, particle and slurry in many industries, such as ceramics, food processing, pharmaceuticals, chemicals, bio-chemicals, electronics, plastic, rubber, grinding, recycle and etc.
Specifications
Model | Power (HP) |
Frequency (Hz) |
Speed (RPM) |
Centrifugal force (kg) |
Effective screen area | Net wt. (kg) |
Capacity (tons/hr) |
|
L.(mm) | W.(mm) | |||||||
GY-400E | 0.2 | 50/60 | 1470/1720 | 250 | 340 | 590 | 0.1~0.3 | |
GY-600E | 0.5 | 50/60 | 1470/1720 | 600 | 606 | 910 | 145 | 0.25~0.55 |
GY-800E | 1 | 50/60 | 1470/1720 | 800 | 800 | 1360 | 0.5~1 | |
GY-1200E | 2.5 | 50/60 | 1470/1720 | 1600 | 956 | 1860 | 834 | 1.2~2.3 |
