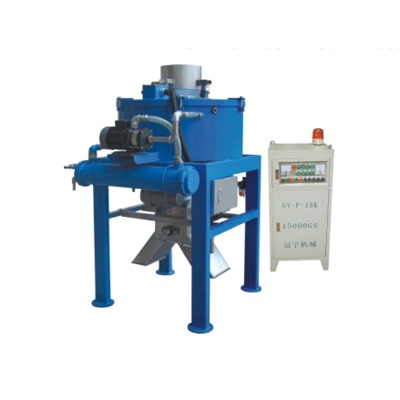

Auto Electromagnetic Iron-Remover for Power Form Material
Model: GY-F-15K
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
This machine is applicable for removing ferrous contamination in powder form material which has been sieved from mess #40 screens. This separator is suitable for many industries, such as ceramic, chemical, electronics and etc.
Specifications
| Item | Specification |
| Input voltge | 3 phase, 380V / 415V(depends request) |
| Output voltge | DC 180V |
| Initial current | 25~30A |
| Thermal balance current | 25A |
| TherTmal balance temperature | 60°C |
| Total power | 5KW |
| Excitation magnetic power | 30KW |
| Horizontal type vibrator | 260kg, 2 ests(voltage depends on request) |
| Intensity of magnetic field | >=15000GS |
| Cooling way | Outer coolant-water, inner coolant-transformer oil |
| Denagnetizing way | Demagnetizing coil |
| Capacity | 2-3 tons / hour(feldspar powder) |
| Weight | Net Weight 800 kgs |
