Cutter
Model: MS-1525
Category: Machine Tools / Gear Cutting Machines / Gear Cutting Machines
Characteristics

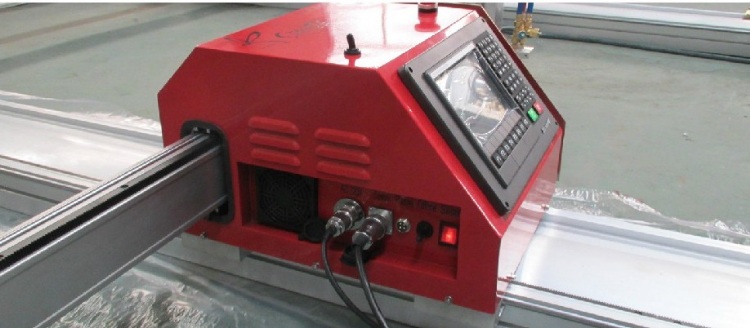

CNC Plasma Cutting Machine for metal- start shaphon Brand
Portable CNC plasma cutting machine / CNC flame cutting machine is used for cutting metal plate, cut machine, such as steel plate. Faceful man-machine conversation.The beam can be easily disassembled, easy for packing and shipment. Sealing perfect, dust-proof.,light, smart and portable.
Cutting width:1500mm
Cutting length:3000mm
Effective cutting width: 0-1500mm
Effective cutting length: 0-3000mm
Effective cutting thickness:Flame cutting 6-150 mm
Plasma cutting 0.1-20mm (Up to the plasma power)
Parameter
Input voltage: 220V
Gas depression: Max0.1Mpa
Power frequency: 50HZ
Oxygen deprission:Max1.5Mpa
Rated power: 160W
Cutting type: plasma
Display: 7inch
Total weight: 140Kg
Automatic height controller SH-HC30
Automatic capacitance-height controller and automatic arc-height controller are the newest product of our company. The automatic capacitance-height controller is used for portable CNC flame cutting machine, the automatic arc-height controllor is used for portable CNC plasma cutting machine. This kind of automatic height controller can realize automatic function of going up and down between plate and torch.
Specifications
Input voltage | 220V |
Rated power | 160W |
Power frequency | 50HZ |
CNC control system | SH2012AH-QG |
LCD size | 7’’ color display |
Fuel gas source pressure | Max .0.1Mpa |
Oxygen Source Pressure | Max. 1.5Mpa |
Cutting type | Flame or Plasma |
Max. cutting speed | 0-8m/min |
Cutting thickness for flame | 6-150mm |
Cutting thickness for plasma | 0.1-50mm(according to plasma source) |
Fuel | Propane, Acetylene, Methane |
