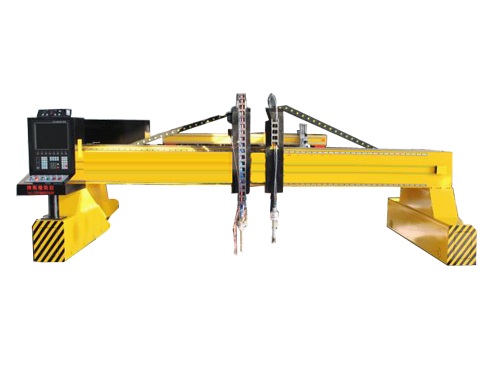

Gantry type plasma and OXY metal cutting machine
Model: MSG-2060
Category: Machine Tools / Machining Centers / CNC 5-Axis Machining Centers
Characteristics
plasma steel plate cutting machine,plasma cutting machine,plasma cutter,cnc plasma and flame cutting machine,metal cutter
plasma steel plate cutting machine,plasma cutting machine,plasma cutter,cnc plasma and flame cutting machine,metal cutter
These steel plate cutting machines are in both plasma cutting mode and flame cutting mode. Machines are adopted gapless gearing transmit,high accuracy rail,Panasonic drivers,Neugart gear box,the whole machine body was annealed. All the above motheds can guarantee our machine's high accuracy in high speed cutting.
Specifications
|
Number |
Project |
Quantity |
Unit |
说 明 |
|
1 |
Mode MSG-2040 |
1 |
set |
Start |
|
2 |
Driven approach |
|
|
Bilateral |
|
3 |
Machine span |
3000 |
㎜ |
Effective cutting width 2200mm |
|
4 |
Length machine guide |
6000 |
㎜ |
Effective cutting lenghth 6000mm |
|
5 |
Drive system |
3 |
set |
Panasonic digital AC servo motor and drive |
|
6 |
Reducer |
3 |
set |
German reducer |
|
7 |
NC system |
1 |
set |
Start-2200 |
|
8 |
Horizontal gas-way-cable transmission |
2 |
set |
Heavy engineering towline |
|
9 |
apacitive automatically system |
1 |
set |
Hayes technology |
|
10 |
Automatic arc voltage system |
1 |
set |
Shenzhen HYD/Start SH-HC30 |
|
11 |
Horizontal rails |
2 |
root |
Taiwan |
|
12 |
Longitudinal guide |
6（total：12m） |
2m/set |
Precision machining of elevator guide rail |
|
13 |
NC lateral movement |
2 |
set |
Start CNC |
|
14 |
The torch drag way |
|
|
Strip |
|
15 |
Automatic ignition |
1 |
set |
Wuxi |
|
16 |
Anti-collision device |
1 |
set |
Start |
|
17 |
Plasma gripper |
1 |
set |
Start |
|
18 |
Back to firearms |
1 |
set |
Wuxi |
|
19 |
Solenoid valve back to firearms |
1 |
set |
Wuxi |
|
20 |
Auto nesting sofware |
1 |
set |
Fast CAM software |
