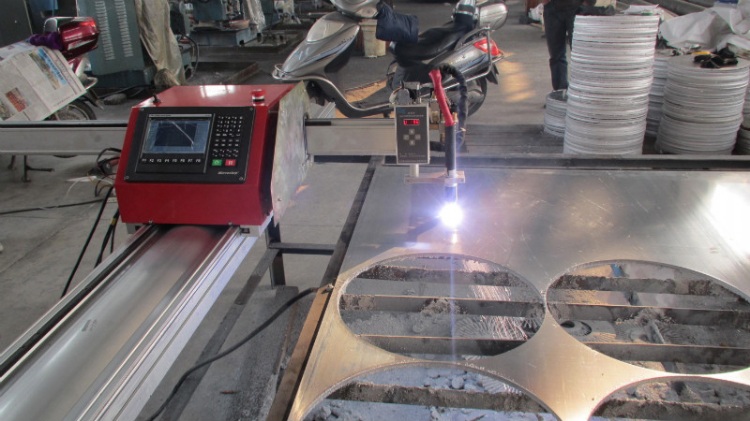

Portable plasma Metal cutting Machine
Model: MS-1525
Category: Machine Tools / Machining Centers / Machining Centers, Horizontal
Characteristics
CNC Portable Cutting Machine
CNC cutter CNC plasma cutter Portable CNC Cutting Machine
Specifications:
1. The overall processing machine base: Good stability, not deformed
2. Using beeline and double-slide lead rails, high accuracy
3. A detachable structural design for arm, convenient transportation and installation
4. Beautiful structure, coordination, light weight;
5. Machine base is made in steel.
6. The CNC control system has the following character:
1) High reliability, such as anti-plasma jamming, and lightning strike, Surge;
2) 32M users program storage capacity can update to 64M;
3) In both English and Chinese interface conversion;
4) During plasma processing, auto-complete the speed control of the corner
5) Rich software features and practical flame / plasma cutting process;
6) In particular small line section procedure processing can be widely used in metal materials and advertisement, Iron;
7) Dynamic graphics, zoom in 1-8X the graphics, fixed point of automatic tracking;
8) Using USB Flash Drive reading procedure and timely upgrade software;
9) Built-in the rich graphics, makes programming easy to learn.
Specifications
Input voltage | 220V |
Rated power | 160W |
Power frequency | 50HZ |
CNC control system | SH2012AH-QG |
LCD size | 7'' color display |
Fuel gas source pressure | Max .0.1Mpa |
Oxygen Source Pressure | Max. 1.5Mpa |
Cutting type | Flame or Plasma |
Max. cutting speed | 0-8m/min |
Cutting thickness for flame | 6-150mm |
Cutting thickness for plasma | 0.1-50mm(according to plasma source) |
Fuel | Propane, Acetylene, Methane |
