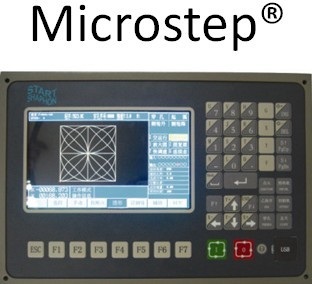

CNC plasma cutting machine controller
Model: SH-2012AH/QG
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
1. Dynamic graphics adaptable for 7" TFT clolor LCD
2. 32M~64M storage capacity for big program and processing will not be limited in capacity
3. Internal plasma/flame cutting technology with slotted compensation
4. Power failure recovery, breakpoint memory and same route back before continuing
5. Continuous small line smoothing functions
6. Compatible with CAD/CAM nesting software such as IBE
7. ARM7 processing chip, high reliability and pass of EMC testing
8. Support 2~4 linkage-axis, 13-way optical isolated input and 8-relay output
9. With ability of selective process, torch gun can be adjusted at any position and process means is selectable
10. Internal large intelligent graphic library, more efficient use by modifying graphics and making simple nesting
11. Internal 4 relays with functions of arc interrupter and arc discharge, active and passive output can be performed simultaneously
Specifications
Model | SH2012AH-QG |
Processor | Industrial ARM7 CPU |
Display | 7” Color LCD |
Input | 13 channels of optical isolation input |
Output | 8 channels of optical isolation output |
Interlocked axles | 2 axles, extensible to 4 interlocked axles |
Max. speed | < 24m/min |
Pulse Equivalency | Variable, electronic gear, numerator and optional denominator in the range from 1 to 65535 |
Memory space | 32-64M oversized memory capacity for user program and no restriction to machining program |
Machine case size | 298*202*95.2(mm) |
