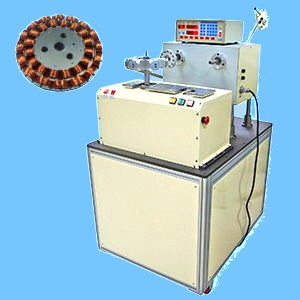

Stator Coil Winding Machine
Model: SW-8982
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Winding Machines, Automatic Winding Machines
Characteristics
Shining Sun Enterprise Co., Ltd. Founded in 1991, As the one of the leader manufacturer specialize in Coil Winding Machines, Soldering Machines and related equipment designed for the transformers and coils production.
We never delay our delivery and after sales service is none to compare, from setup, testing, job training, components design, we are able to keep up with our customers' demands.
Because of our strong research ability, professionalism and diligent marketing staff, we as a team is able to extend our business not only in local also promote to international markets in a short period of time.
Today, there is many industry's foremost companies use our machinery.
From 1992 until now, we extend our market to China, Japan, Russia, Europe, America and etc.
Let our strong R&D team develop your production, increase efficiency and reduce production cost.
Specifications
SPECIFICATION: | ||
POWER: | AC 220V | 50 / 60 HZ |
MAIN MOTOR : | Servo Motor 750W | |
TRAVERSE MOTOR : | Stepping Motor | |
WIRE SIZE: | Ø0.05 ~ Ø2.0 mm | |
SPINDLES: | Two Spindle | |
SPEED: | 1500 r.p.m. | |
WINDING WIDTH : | 0 ~ 50 mm | |
WINDING PITCH.: | 0 ~ 9.999mm | |
STORE MEMORY : | 0 ~ 999 STEPS | |
STATOR DIAMETER: | 350 mm Max. | |
THICKNESS: | 90mm(adjustable) | |
DIMENSION: | 530(D)*1190(L)*1305(H) |
