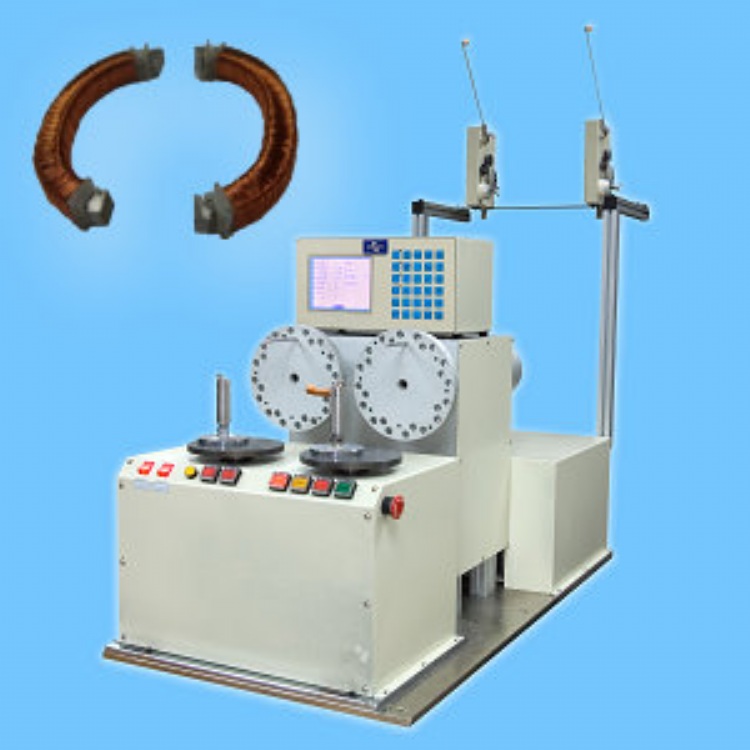

Clamp Coil Winding Machine
Model: SW-209
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
1.Setting three spindle of motor action at the same time.
2.Make straight & arc shape of winding.
3.Suitable for plenty section of irregular shape winding.
Specifications
SPECIFICATION:
POWER: AC220V 50 / 60 HZ
MAIN MOTOR: 400W Servo Motor
SPREAD MOTOR: 400W Servo Motor
ROTATOR SHAFT MOTOR: 400W Servo Motor
CONTROLLER: Three spindle servo control system
R.P.M : 1500
SPREAD RANGE : 85mm Max
PITCH: 0~9.999mm
ROTATOR ANGLE: 0~±360°
DIMENSION: 530(W)*1450(L)*1090(H)mm
