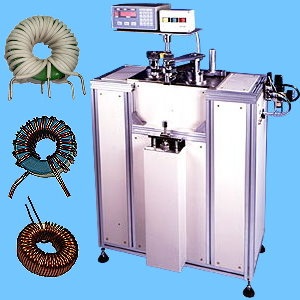

Toroidal Coil Winder
Model: STW-60
Category: Automatic/Industrial Machines & Equipments / Special Machine Tools / Winding Machines, Automatic Winding Machines
Characteristics
FUNCTION:
1. Semi - automatic hook winder.
2. Able to set - up the winding pitch.
3. Able to set - up the winding turns.
4. Able to set - up the direction of forward or reverse winding.
Specifications
SPECIFICATION: | ||
Power Supply: | AC 110V / 220V / 240V | 50 / 60 HZ |
Compressor supply: | 4 kgs / Cm2 | |
Power consumption: | 500 W. | |
Rotation Speed: | 50 r.p.m | |
Wire size: | Ø 0.1 ~ 3.0 mm | |
O.D. of Toroidal | Ø 80 mm Max | |
I.D. (finished) | Ø 6 mm min | |
Height of Toroidal (Max) | 50 mm |
