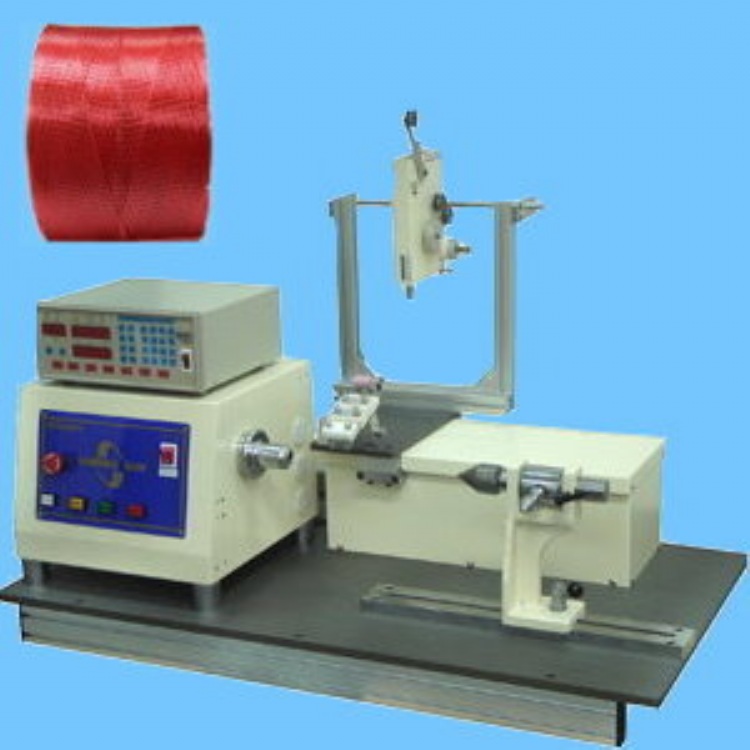

Cross Winding Machine
Model: SW-2030N
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
SPECIFICATION:
POWER:AC 220V50 / 60 HZ
MAIN MOTOR:750W Servo Motor
SPREAD:Stepping Motor
PITCH: 0.01 -99.99mm
MEMORY:999 Step
WIRE SIZE:O0.06 - O3mm
R.P.M. : 200
SPREAD RANGE: 0-300mm
WINDING DIA.:250 mm
WEIGHT: 105 Kg
DIMENSION: 980(L)*650(W)*740(H)mm
Specifications
SPECIFICATION:
POWER: AC 220V 50 / 60 HZ
MAIN MOTOR: 750W Servo Motor
SPREAD: Stepping Motor
PITCH: 0.01 - 99.99mm
MEMORY: 999 Step
WIRE SIZE: Ø0.06 - Ø3mm
R.P.M. 200
SPREAD RANGE: 0-300mm
WINDING DIA.: 250 mm
WEIGHT: 105 Kg
DIMENSION: 980(L)*650(W)*740(H)mm
