Hot Melt Glue for Plywood, wood bonding
Model: ST-HM24, ST-HM54
Category: Woodworking Machinery Industry / Others / Glues
Characteristics
Type: ST-HM24
Characteristics:

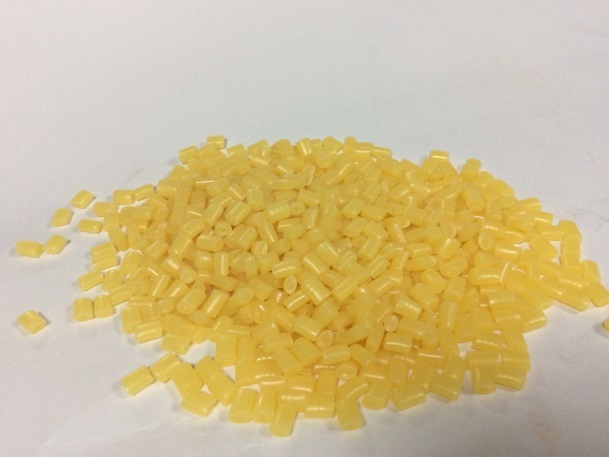

Form: Pellet
Color: Yellow
Viscosity(mPa.s): 180℃-9350
160℃-14300
Softing point(℃): 102
Open time(sec) : 8 ~ 10
Setting time(min) : 2 ~ 3
Specifications
Type: ST-HM24
Composition:
|
Ethyl Vinyl Acetate |
20-50% |
|
Tackifiers |
20-50% |
|
Wax |
5-25% |
|
Fillers |
5-20% |
|
Antioxidant |
0.1-2% |
Packing: 25 kgs/carton, 1,000 kgs/pallet, 10,000 kgs/10 pallet for one 20ft CY.
Type: ST-HM54
Performance
|
TEST ITEM |
STANDARD |
TEST METHOD |
|
|
FORM |
PIECE |
Sight |
|
|
COLOR |
YELLOW |
Sight |
|
|
VISCOSITY
(m．Pas) |
180℃ |
8800±100 |
ＢType viscometer |
|
160℃ |
16500±2000 |
ＢType viscometer |
|
|
SOFTING POINT(℃) |
94±4 |
Ring & Ball |
|
|
OPEN TIME(sec) |
8∼10 |
|
|
|
SETTING TIME(sec) |
2∼3 |
|
|
|
HEAT RESISTANCE(℃) |
60 |
|
|
|
COOL RESISTANCE(℃) |
-20 |
|
|
Purpose：wood bonding，plywood.
The most suitable applied temperature：155∼170℃.
Packing: 25 kgs/bag, 1,.00 kgs/pallet, 13,000 kgs/10 pallet for one 20ft CY.
