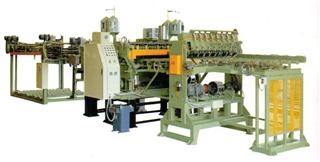

4’Full Auto Veneer Core Composer, Hydraulic Driven System Long Core Veneer Composer, 8’PLC Full Auto Veneer Long Core Composer
Model: CTVCJ-H-4, CTVCJ-SAW-H-8M, CTVCJ-H-8
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Cold Press Lumber Composer(Handle Twist Or Hydraulic)
Characteristics
This machine is particular to joint the irregular size of long and short core veneer by the different thickness 1.2~4.5mm. The consistent operation is fully auto from feeding, tenderizing, electronic inspection, clipping, glue jointing and collecting.
It is design to use hydraulic pump driven system instead of the traditional clutch brake driven system, which saves the ordinary parts consumption and takes less time for machine maintenance. Hydraulic driven system has bigger torsion and smaller inertia that clutch brake driven system.
Specifications
4’ PLC Full Auto Veneer Core Composer
Specification:
Length of Knife : 1,350 mm
Veneer Core Width : 968mm-1,270mm (3Ft–4Ft)
Veneer Core Thickness : 1.2mm-4.5mm
Working Speed : 32 M/Min. UP
Detecting Point : 20 Points
Detecting Point for over Thick : 3 Points
String : 5 Line
Gluing Point : 28 Points
Part of Motor
Hydraulic Systems : 5.5Kw x 2pcs; 0.4Kw x 2pc
Water Cooler : 0.4Kw x 1pc
Glue Applicator : Air Cylinder
Heaters : Total 7.5Kw
Water Pump : 0.15Kwx 1pc
Cooling Blower : 0.4Kw x 1pc
Dust Blower : 0.4Kw x 1pc
Dust Blower (Tenderizer only) : 0.75Kw x 1pc
Stacker Lifting : 2.2KW x 1pc
Stacker Conveyor : 0.4KW x 2pc
Part of Hardware
Area Occupied : 4.2MW x 14ML
Machine Weight : Net Weight: 9000 Kg
Volume : 60 M3
Hydraulic Driven System Long Core Veneer Composer for 8 feet x 8 feet with Central Cutting System
Specification:
Length of Knife : 2,700 mm
Veneer Core Width : 1,950mm-2,560mm (6Ft–8Ft)
Veneer Core Thickness : 1.2mm-4.5mm
Working Speed : 24 M/Min. UP
Detecting Point : 30 Points
Detecting Point for over Thick : 4 Points
String : 10 Line
Gluing Point : 60 Points
Part of Motor
Hydraulic Systems : 7.5Kw x 2pcs
Water Cooler : Orion
Glue Applicator : Air Cylinder
Heaters : Total: 15Kw
Water Cooler : 0.4Kw x 1pc
Water Pump : 0.4Kw x 1pc
Dust Fan For Tenderizer : 0.75Kw x 1pc
Cooling Fan : 0.75Kw x 2pc
In-Feed Stacking Conveyor : 0.4Kw x 1pc
Stacker Lifting : 2.2KW x 1pc
Stacker Conveyor : 2.2KW x 1pc
Part of Hardware
Area Occupied : 5.5ML x 16ML
Machine Weight : Net Weight: 14,500 Kg
Volume : 110 M3
8’PLC Full Auto Veneer Long Core Composer
Specification:
Length of Knife : 2,700 mm
Veneer Core Width : 1,950mm-2,560mm (6FT.–8FT.)
Veneer Core Thickness : 1.2mm-4.5mm
Working Speed : 24 M/Min. UP
Thickness Detecting : 30 Points
Over Thickness Detecting : 4 Points
String : 10 Lines
Edge-gluing Points : 60 Points
Part of Motor
Hydraulic Systems : 7.5 KW x 2pc; 0.4KW x 2pc
Water Cooler : 0.4KW x 1pc
Glue Applicator : Air Cylinder
Heaters : Total 15 Kw
Water Pump : 0.4 Kw x 1pc
Dust Blower : 0.4 Kw x 1pc
Cooling Blower : 0.75Kw x 2pc
Dust Blower (Tenderizer only) : 0.75Kw x 1pc
Stacker Lifting : 2.2Kw x 1pc
Stacker Conveyor : 0.4Kw x 2pc
Part of Hardware
Area Occupied : 5.5MW x 12ML
Machine Weight : Net Weight: 14,500 Kgs
Volume : 110 M3
