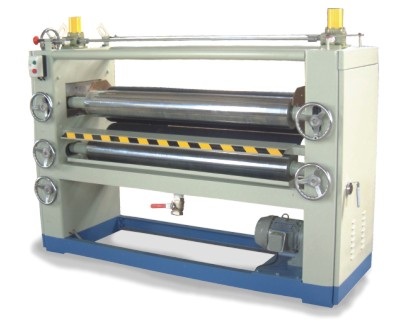

Single face Glue Spreader
Model: HD-GS-4A, HD-GS-5A
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Glue Spreader
Characteristics
4' Single face Glue Spreader:
Feeding Speed :0-40M/Min. (Variable-frequency control)
5' Single face Glue Spreader:
Feeding Speed :0-40M/Min. (Variable-frequency control)
Specifications
4' Single face Glue Spreader:
Main Motor : 2 HP x 4P
Feeding Speed : 0-40M/Min. (Variable-frequency control)
Electric Opening and Closing : 1/2 HP
Main Rubber Roll : ψ266 x 1400 x 1pce
Lower Roll : ψ265 x 1350 x 1pce
Doctor Roll : ψ180 x 1400 x 1pce
Spreading Rubber Roll : ψ267 x 1400 x 1pce
5' Single face Glue Spreader:
Main Motor : 3 HP x 4 P
Feeding Speed : 0-40M/Min. (Variable-frequency control)
Electric Opening and Closing : 1/2 HP
Main Rubber Roll : ψ266 x 1700
Lower Roll : ψ265 x 1650
Doctor Roll : ψ180 x 1700
Quantity Applied : 10-40g/sq.ft
Working Thickness : 0-40mm
Include: Main Rubber Roll 1 pce
