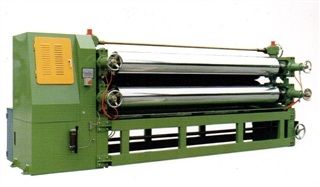

Model: CTGS-9

C/W Discs Conveyor

Include Spare Rubber Roller x 2pcs / Set

Specification:

Rubber Roll : ∮350mm x 2730mmL

Doctor Roll : ∮230mm x 2730mmL

Clearance between Rubber Rolls : 0-55mm

Working Speed : 0-82M/min (0-60HZ)

Parts of Motor

Rubber Roll : 5.5kw x 4P x 1pce

Outfeed Conveyor : 1.5kw x 4P x 1pce

Worm Gear Reducer : TA135 x 1/20

Area Occupied : 4.5MW – 3.0ML

Machine Weight : NW 4500kg

Volume : 20 M3
