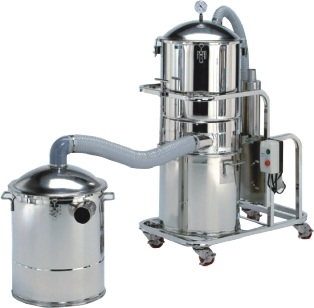

dust collector
Model: CS-103
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Dust Collectors
Characteristics
The dust collector is capable of reducing temperature for powder or granule with some burning point or high temperature, such as powder dusts exhausted from polishing machines or grinders.
•Employ cyclonic centrifugal principle to suck powder or granule into bottom drum.
•The blower is applied for sucking air only. The sucked dusts do not directly contact with motor for increased service life of motor.
•For dry and wet applications.
•Quiet operation. No burning point problem. No need to change filtering bag.
•Suitable for poisonous or non-poisonous dusts such as graphite, fiber, food, carbon powder, aluminum powder, pesticide and medicine. Also featuring anti-explosion of powder.
•Iron chips or copper chips can also be collected (no front tank is required) with maximum durability and easy cleaning..
•Various motor horsepowers and specifications to meet specific requirements.
• The filter-core is manufactured from PET below type filtering element, providing greater filtering area. Applicable for any fine powder.
• Manufactured from SUS#304 material features extremely smooth construction, no powder adhering and easy cleaning.
•The filter-core allows for filtering powder of up to 01µm(micron).
•The turbo blower is ideal for 24 hours running without high-temperature growth.
•Equipped with sound buffering device for reducing noise.
•Equipped with pressure gauge for clearly checking if any jamming occurs or not.
Specifications
MODEL |
CS-1031 |
|||||||||||
MOTOR HP | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | |||||
Output power KW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | |||||
Volt V (optional) | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
Inlet port dia. Inch (optional) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | |||||
Static pressure mmAq | 270 | 320 | 380 | 400 | 600 | 500 | 650 | |||||
Dimensions CM (LxWxH) | 116 x 77 x 160 | 116 x 77 x 160 | 116 x 77 x 160 | 116 x 77 x 160 | 100 x 200 x 220 100 x 100 x 300 |
100 x 200 x 220 100 x 100 x 300 |
(By Drawing) | |||||
Air flow m3/min. (optional) | 18 | 22 | 40 | 45 | 48 | 75 | 80 | |||||
Noise level db | 65 | 70 | 75 | 80 | 85 | 85 | 85 | |||||
Volume L (optional) | 40 | 40 | 40 | 40 | 80 | 80 | 80 | |||||
Machine weight Kg | 72 | 79 | 86 | 107 | 298 | 320 | 600 | |||||
|
