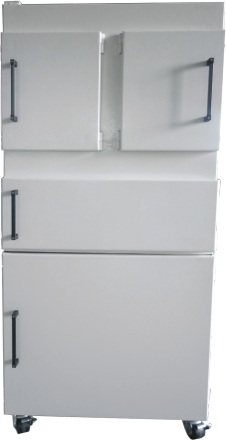

dust collector
Model: NS-502
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Dust Collectors
Characteristics
¡EBlower purely ventilation effectiveness of inhaled substances there is no direct contact with the motor, motor durable.
¡EWet or dry, can be used as a general cleaner.
¡E 24-hour access.
¡E Powder, with or without graphite, fiber, food, toner powder, aluminum powder, pesticides, pharmaceuticals and other toxic can be used.
¡E Iron or copper scrap metal when recycling bins, durable good cleaning.
¡E High-voltage pulse jet dust in the hearts of the automatic cleaning filter, dust and vibration off automatically, and can be used around the clock.
¡E Taiwan's first automatic thrust Filter dust collector, mute, there is no need to change the filter bag.
¡E Filter Filter Material PET folding filter area, any fine powder can be used.
¡E Various horsepower and size specifications of both, depending on the circumstances demand to match.
¡E Filter can be filtered to 0.1£gm (micron) powder.
¡E With consumer speakers device, reduce noise pollution.
Specifications
| MOTOR HP | 1 | 2 | 3 | 5 | 7 | 10 | 15 | |||||
| Output power KW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | |||||
| Volt V (optional) | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
| Inlet port dia. Inch (optional) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||
| Static pressure mmAq | 1800 | 2500 | 2800 | 3000 | 3200 | 3400 | 3000 | |||||
| Dimensions CM (LxWxH) | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | |||||
| Air flow m3/min. (optional) | 2.2 | 4.5 | 6.2 | 8.3 | 9.5 | 11 | 24 | |||||
| Noise level db | 60 | 65 | 65 | 67 | 74 | 74 | 76 | |||||
| Volume L (optional) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |||||
| Machine weight Kg | 72 | 82 | 87 | 107 | 137 | 147 | 227 | |||||
|
||||||||||||
