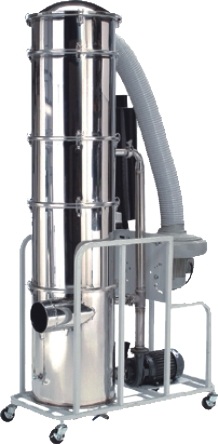

WASTE GAS COLLECTOR
Model: CS-106
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pollution Abatement Equipment
Characteristics
The waste gas is sucked through the dust collection system to the washing tower, in which the waste gas is washed completely through water curtain and 3 times of spray washing. Then they will be exhausted out through the rear mist removing device (gas/fluid separation).
•Equipped with sound buffering device to reduce noise level.
•The filter can be repeatedly washed for reuse.
•The tanks are manufactured from stainless steel.
•Capable of reducing temperature for any high-temperature powder or waste gas.
• Suitable for handling high temperature and odoriferous waste gas and purifying oil mist and removing odor. Applicable for tin furnace, picking, eroding, electro-plating, carving, rubber, plastic, chemical factories, food-processing factories and parts machining factories.
Specifications
MODEL |
CS-1061 |
|||||||||||
MOTOR HP | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | |||||
Output power KW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | |||||
Volt V (optional) | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
Inlet Diameter (Inch) (optional) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | |||||
Static pressure mmAq | 270 | 320 | 380 | 400 | 600 | 500 | 650 | |||||
Dimensions CM (LxWxH) | 120 x 76 x 220 | 120 x 76 x 220 | 150x90x285 | 150x90x285 | 200x120x285 | 200x120x285 | (By Drawing) | |||||
Air flow m3/min. (optional) | 18 | 22 | 40 | 45 | 48 | 75 | 80 | |||||
Noise level db | 65 | 70 | 75 | 80 | 85 | 85 | 85 | |||||
Volume L (optional) | 40 | 40 | 80 | 80 | 80 | 80 | (By Drawing) | |||||
Machine weight Kg | 124 | 132 | 200 | 220 | 298 | 320 | (By Drawing) | |||||
|
