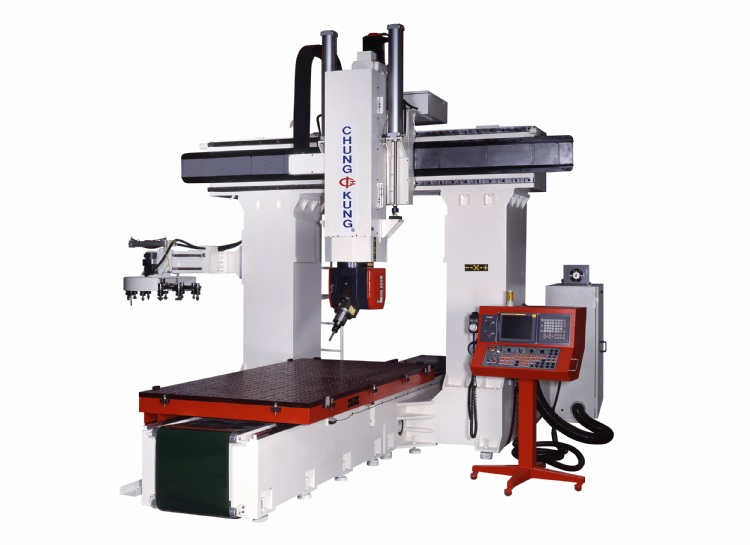

5 AXIS CNC PROCESSING MACHINE
Model: CNC-5AXIS-ATC
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / CNC Woodworking Machine
Characteristics
Chung Kung 5-axis CNC processing machines are highly versatile, able to process aluminum and wood molds for the auto and shipbuilding industries. A diversity of other materials can also be processed with these machines including high pressure laminate boards, acrylic, plastic, foam rubber, artificial stone, bakelite, and silicone rubber.
Specifications
ITEM | DESCRIPTION | CNC-5AXIS-ATC |
---|---|---|
SPINDLE | No. of Spindles | 1 |
Speed |
2,000 ~ 22,000 r.p.m. |
|
Spindle Lub. | Grease & Cooling Water | |
TABLE SIZE | 4’×8’ | 4’×8’ |
AXES TRAVEL | Horizontal (X-Axis) | 1320mm |
Longitudinal (Y-Axis) | 2540mm | |
Vertical (Z-Axis) | 700mm | |
C-Axis | +/-213 degrees | |
A-Axis | +/-120 degrees | |
MAX. FEED SPEED | X, Y Axes | 32 M/min. |
Z Axis | 9 M/min. | |
A axis | 82.50/Sec | |
C axis | 740/Sec | |
TOOLS | Tool Holder Type | ISO-30 |
No. of Tools Per Spindle | 12 | |
MOTOR | Spindle | 15KW×1 |
Vacuum Pump | 7.5HP×1 | |
VACUUM PUMP | Capacity |
50HZ : 250M3/H, |
AIR PRESSURE | 6 kg/cm2 | |
DIMENSIONS | Floor Space Required (mm) | 5100×4100 |
Height (mm) | 3650 | |
Weight (kgs) | 9000 | |
CNC SYSTEM | Fanuc | Fanuc 18i-MB5 |
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Spindle: HSD, Italy
