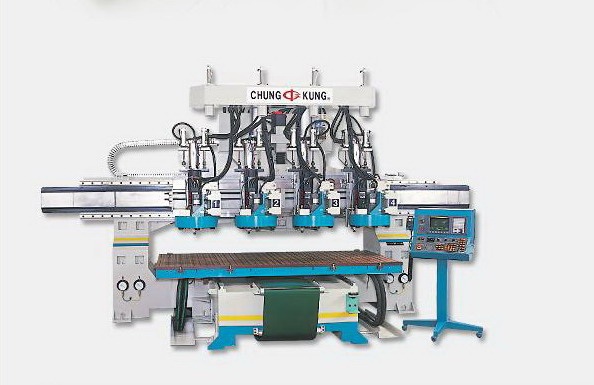

CNC PROCESSING MACHINE
Model: RO-403ATC(L)
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / CNC Woodworking Machine
Characteristics
This model can be used to process aluminum molds, wood molds, pressboard, acrylic, plastic, styrofoam, artifical stone and bakelite, etc.
Specifications
| ITEM | DESCRIPTION | RO-403ATC(L) | |
|---|---|---|---|
| SPINDLE | No. of Spindles | 4 | |
| Speed | 1,000 ~ 20,000 r.p.m. | ||
| Distance Between Spindles | 430mm ~600mm | ||
| Spindle Lub. | Grease | ||
| TABLE SIZE | 4’×8’ or 5’×10’ | 4’×8’ | 5’×10’ |
| AXES TRAVEL | Horizontal (X-Axis) | 2540mm | 3140mm |
| Longitudinal (Y-Axis) | 1320mm | 1650mm | |
| Vertical (Z-Axis) | 200mm | 200mm | |
| MAX. FEED SPEED | X, Y Axes | 32 M/min. | |
| Z Axis | 9 M/min. | ||
| TOOLS | Tool Holder Type | ISO-30 | |
| No. of Tools Per Spindle | 6 | ||
| MOTOR | Spindle | 10.5HP×4 Front Type ATC |
|
| Vacuum Pump | 7.5HP×1 | ||
| VACUUM PUMP | Capacity |
50HZ : 250M3/H, |
|
| AIR PRESSURE | 6 kg/cm2 | ||
| DIMENSIONS | Floor Space Required (mm) | 5200×3000 | 6000×3700 |
| Height (mm) | 2850 | 2850 | |
| Weight (kgs) | 9000 | 10500 | |
| CNC SYSTEM | Fanuc or Mitsubishi | Fanuc or Mitsubishi | |
※Standard components :
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Spindle: HSD, Italy
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Spindle: HSD, Italy
