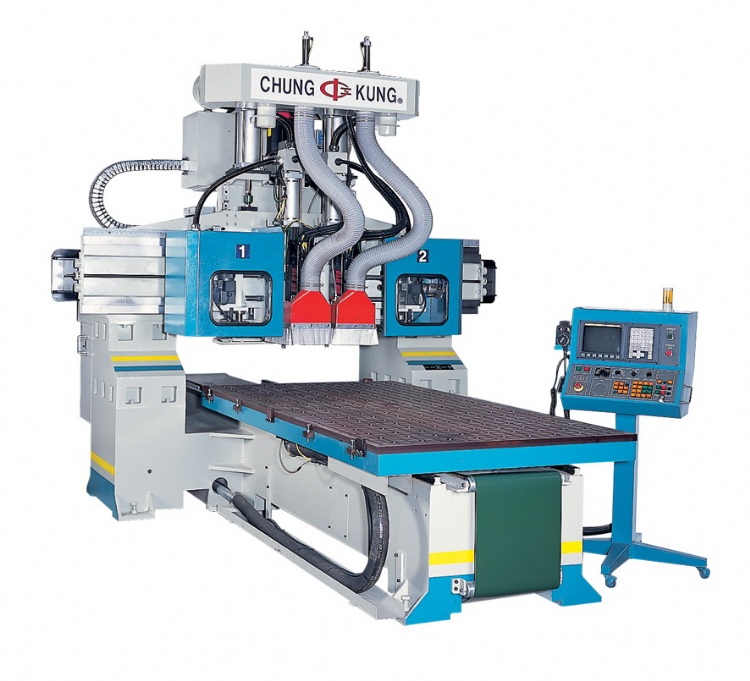

CNC PROCESSING MACHINE

Model: RO-203ATC-A

Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / CNC Woodworking Machine

Online Inquiry

Characteristics

This model can be used to process aluminum molds, wood molds, pressboard, acrylic, plastic, styrofoam, artifical stone and bakelite, etc.

Specifications

ITEM	DESCRIPTION	RO-203ATC-A
SPINDLE	No. of Spindles	2
	Speed	1,000 ~ 20,000 r.p.m.
	Distance Between Spindles	250mm ~1000mm
	Spindle Lub.	Grease
TABLE SIZE	4’×8’ or 5’×10’	4’×8’	5’×10’
AXES TRAVEL	Horizontal (X-Axis)	1320mm	1620mm
	Longitudinal (Y-Axis)	2550mm	3140mm
	Vertical (Z-Axis)	200mm	200mm
MAX. FEED SPEED	X, Y Axes	32 M/min.
MAX. FEED SPEED	Z Axis	9 M/min.
TOOLS	Tool Holder Type	ISO-30
TOOLS	No. of Tools Per Spindle	6
MOTOR	Spindle	10.5HP×2
MOTOR	Vacuum Pump	7.5HP×1
VACUUM PUMP	Capacity	50HZ : 250M3/H, 60HZ : 300M3/H
AIR PRESSURE		6 kg/cm2
DIMENSIONS	Floor Space Required (mm)	6000×2800	6700×3000
	Height (mm)	2900	2900
	Weight (kgs)	7500	9000
CNC SYSTEM	Fanuc or Mitsubishi	Fanuc or Mitsubishi

※Standard components :
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Spindle: HSD, Italy
