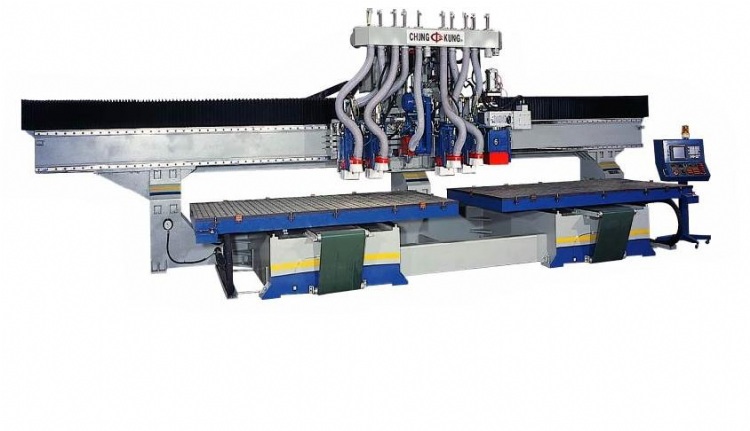

CNC PROCESSING MACHINE
Model: RO-603J-PBSC-2T
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / CNC Woodworking Machine
Characteristics
This model can be used to process aluminum molds, wood molds, pressboard, acrylic, plastic, styrofoam, artificial stone and bakelite, etc.
Specifications
ITEM | DESCRIPTION | RO-603J-PBSC-2T | |
---|---|---|---|
SPINDLE | No. of Spindles | 10 | |
Standard Head | 8 | ||
Speed | 1,000 ~ 18,000 r.p.m | ||
Saw Blade Unitr |
1 × 12” Saw (00 ~ 900 Rotation) |
||
Cutter Unit |
1 (00 ~ 3600 Rotation) |
||
Spindle Lub. | Oil Mist | ||
TABLE SIZE | 4’×8’ or 5’×10’ | 4’×8’×2 | 5’×10’×2 |
AXES TRAVEL | Horizontal (X-Axis) | 6800mm | 8000mm |
Longitudinal (Y-Axis) | 1320mm | 1620mm | |
Vertical (Z-Axis) | 200mm | 200mm | |
A-Axis | 1320mm | 1600mm | |
B-Axis | 00 ~ 3600 | 00 ~ 3600 | |
MAX. FEED SPEED | X、Y、A Axes | 32 M/min. | |
Z Axis | 9 M/min. | ||
B Axis | 2 M/min. | ||
TOOLS | Router Bit Shank | Ø6, Ø9, Ø10, Ø12, Ø16mm, Ø1/4”, Ø1/2”, Ø3/8” | |
Shaper Cutter Diameter | 30mm & 50mm (Cutter head center) | ||
Saw Blade Center Diameter | Ø25.4mm | ||
MOTOR | Spindle | 15HP×4 | |
Piggy Back Spindle | 5HP×4 | ||
Cutter Unit (3600) | 5HP×1 | ||
Saw Blade Unit | 7.5HP×1 | ||
Vacuum Pump | 7.5HP×2 | ||
VACUUM PUMP | Capacity |
50HZ : 250M3/H, |
|
AIR PRESSURE | 6 kg/cm2 | ||
DIMENSIONS | Floor Space Required (mm) | 8800×3600 | 10000×4000 |
Height (mm) | 2900 | 2900 | |
Weight (kgs) | 13500 | 15500 | |
CNC SYSTEM | Fanuc or Mitsubishi | Fanuc or Mitsubishi |
※Standard components :
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Main spindle & piggy back spindle : SHIN-OH, Japan
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Main spindle & piggy back spindle : SHIN-OH, Japan
