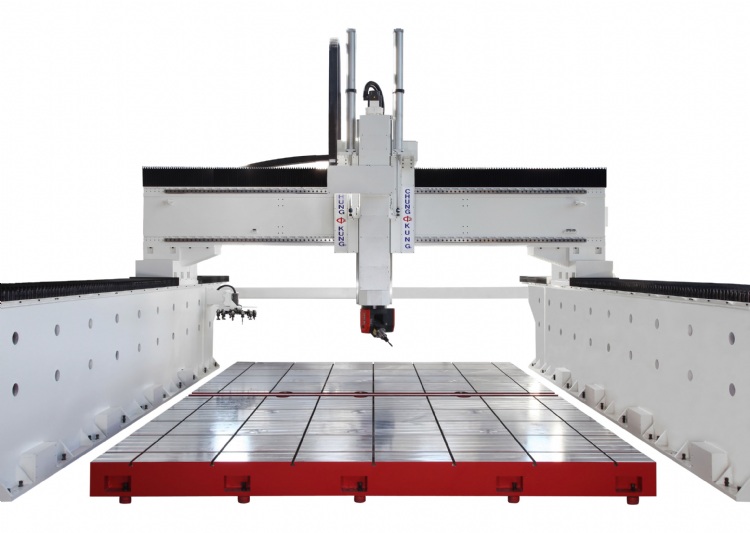

GANTRY TYPE 5-AXIS CNC PROCESSING MACHINE
Model: CNC-5AXIS-ATC-HD
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / CNC Woodworking Machine
Characteristics
GANTRY TYPE 5-AXIS CNC PROCESSING MACHINE can be used to process aluminum molds, wood molds, pressboard, acrylic, plastic, styrofoam,artificial stone and bakelite, etc. Maximum Processing Size Specification is X/Y/Z : 6000mm/30000mm/3000mm.
Specifications
| ITEM | DESCRIPTION | CNC-5AXIS-ATC-HD |
|---|---|---|
| SPINDLE | No. of Spindles | 1 |
| Speed | 2,000 ~ 24,000 RPM | |
| ATC Magazine | 1 | |
| TABLE SIZE | 4200mm(left to right)×6000mm(front to back) | |
| T-slots | 7 T-slots left to right, 10 T-slots front to back, distance between T-slots 600mm | |
| AXES TRAVEL | Horizontal (X-Axis) | 1450mm |
| Longitudinal (Y-Axis) | 2500mm | |
| Vertical (Z-Axis) | 200mm | |
| A-Axis/ C-Axis | ± 120 ° / ±213 | |
| MAX. FEED SPEED | X, Y Axes | 18 M/min (60 M/min optional) |
| Z Axis | 9 M/min (20 M/min optional) | |
| A-Axis/ C-Axis | 82.5 °/sec / 74 °/sec | |
| TOOLS | Tool Holder Type | HSK F63 |
| No. of Tools Per Spindles | 12pcs | |
| Collet Chuck | 12pcs | |
| MOTOR | Spindle (ATC) | 15kw×1 |
| CNC SYSTEM |
Siemens 840D (Germany) |
※Maximum Processing Size Specification is X/Y/Z :
6000mm/30000mm/3000mm.
※Standard components :
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Spindle: HSD, Italy
6000mm/30000mm/3000mm.
※Standard components :
1.Precision ballscrews, guide rail, block : Germany(Rexroth, Bosch Group)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Spindle: HSD, Italy
