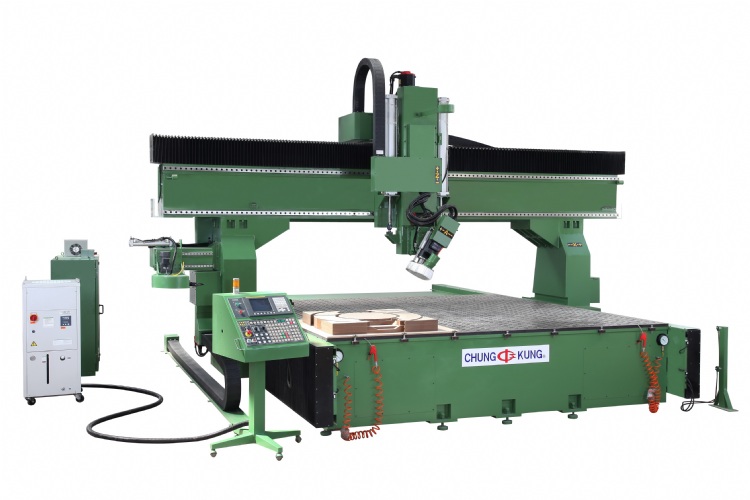

CNC PROCESSING MACHINE
Model: RO-4AXIS-1ATC
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / CNC Woodworking Machine
Characteristics
This model can be used to process aluminum molds, wood molds, pressboard, acrylic, plastic, styrofoam, artificial stone and bakelite, etc.
Specifications
| ITEM | DESCRIPTION | RO-4AXIS-1ATC |
|---|---|---|
| SPINDLE | No. of Spindles | 1 |
| Speed | 2,000 - 24,000 RPM | |
| Spindle Lub. | Grease and Air cooling | |
| TABLE SIZE | 3500mm×3500mm | |
| AXES TRAVEL | Horizontal (X-Axis) | 4000mm |
| Longitudinal (Y-Axis) |
3700mm |
|
| Vertical (Z-Axis) | 850mm | |
| A-Axis | +/- 90° | |
| MAX. FEED SPEED | X, Y Axes | 32 M/min. |
| Z Axis | 9 M/min. | |
| A Axis | 82.5°/sec | |
| TOOLS | Tool Holder Type | HSK F63 |
| No. of Tools Per Spindles | 8 | |
| MOTOR | Spindle | 15KW×1 (Italy, HSD) |
| Vacuum Pump | 7.5HP×1 | |
| VACUUM PUMP | Capacity |
50HZ : 250M3/H, |
| AIR PRESSURE | 6 kg/cm2 | |
| CNC SYSTEM | JAPAN FANUC 0i-MD | |
※Standard components :
1.X/Y-Axis: Rack and pinion systems (Switzerland)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Spindle: HSD, Italy
1.X/Y-Axis: Rack and pinion systems (Switzerland)
Z-Axis: Precision ballscrews (Germany)
2.Frequency inverter : Sanken, Japan
3.Z-axis electric brake : Shinko, Japan
4.Vacuum pump : Becker, Germany
5.Spindle: HSD, Italy
