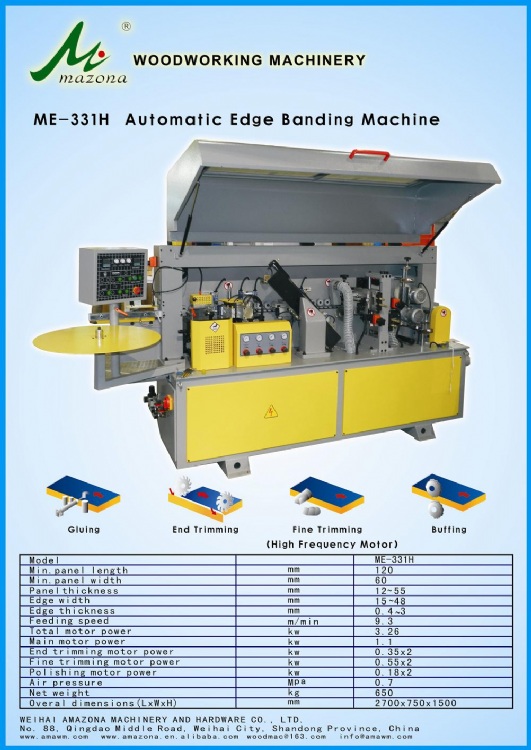

AUTOMATIC EDGE BANDING MACHINE
Model: ME-331H
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Automatic Edge Banding Machine
Characteristics
GLUING,END TRIMMING,FINE TRIMMING(HIGH FREQUENCY MOTOR),BUFFING
Specifications
|
Model |
|
ME-331H |
|
Min.panel length |
mm |
120 |
|
Min.panel width |
mm |
60 |
|
Panel thickness |
mm |
12~55 |
|
Edge width |
mm |
15~48 |
|
Edge thickness |
mm |
0.4~3 |
|
Feeding speed |
m/min |
9.3 |
|
Air pressure |
mpa |
0.7 |
|
Net weight |
kg |
650 |
|
Overall dimensions |
mm |
2900x800x1500 |
