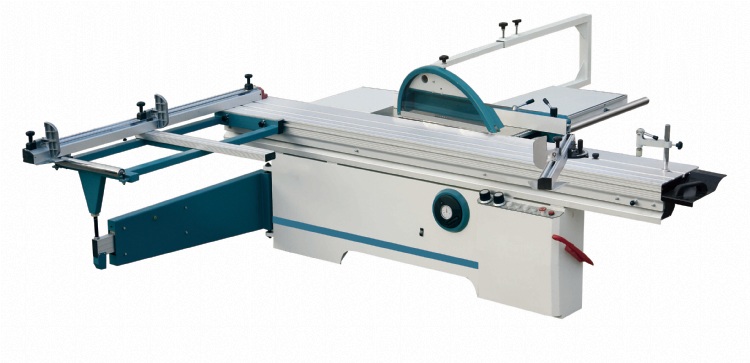

Precision panel saw
Model: MJ6128/32/38TA
Category: Woodworking Machinery Industry / Sawmill Machinery / Trimming Saw
Characteristics
Precision panel saw T: Sliding table 45° A: Altendrof structure
Specifications
|
Model |
|
MJ6128TA |
MJ6132TA |
MJ6138TA |
|
Dimension of sliding table |
mm |
2800x375 |
3200x375 |
3800x375 |
|
Gross cut capacity |
mm |
2800 |
3200 |
3800 |
|
Width of cut between saw blade and rip fence |
mm |
1250 |
1250 |
1250 |
|
Saw blade diameter |
mm |
Φ300 |
Φ300 |
Φ300 |
|
Height of cut (300mm) |
mm |
80 |
80 |
80 |
|
Height of cut with saw blade 300mm at 45° |
mm |
55 |
55 |
55 |
|
Speed of main saw spindle |
rpm |
4000/6000 |
4000/6000 |
4000/6000 |
|
Main spindle diameter |
mm |
Φ30 |
Φ30 |
Φ30 |
|
Tilting saw blade (degree) |
|
0-45° |
0-45° |
0-45° |
|
Main motor |
kw |
5.5 |
5.5 |
5.5 |
|
Scoring saw blade diameter |
mm |
Φ120 |
Φ120 |
Φ120 |
|
Speed of scoring saw blade |
rpm/min |
7000-8000
|
7000-8000 |
7000-8000 |
|
Scoring saw diameter |
mm |
20 |
20 |
20 |
|
Scoring motor |
kw |
1.1 |
1.1 |
1.1 |
