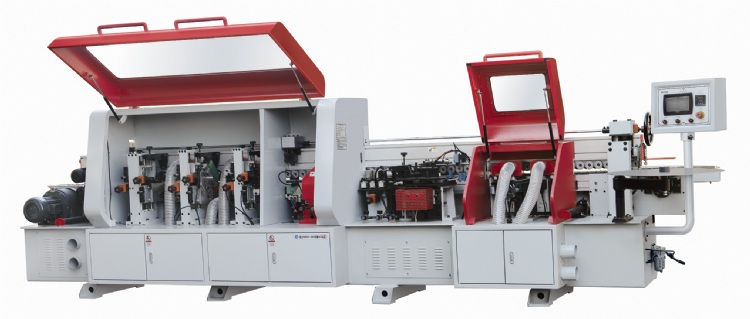

Automatic Edge Banding Machine
Model: ME-360DJS
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Automatic Edge Banding Machine
Characteristics
Buffing; Scraping; Fine Trimming; Rough Trimming; End Trimming; Gluing；Pre-Milling
Specifications
|
Model |
|
ME-360DJS |
|
Min.panel length |
mm |
120 |
|
Min.panel width |
mm |
80 |
|
Panel thickness |
mm |
9~60 |
|
Edge width |
mm |
12~63 |
|
Edge thickness |
mm |
0.4~3 |
|
Feeding speed |
m/min |
12~20 |
|
Power motor |
kw |
11.5 |
|
Air pressure |
mpa |
0.7 |
|
Net weight |
kg |
2500 |
|
Overall dimensions |
mm |
5500x900x1600 |
