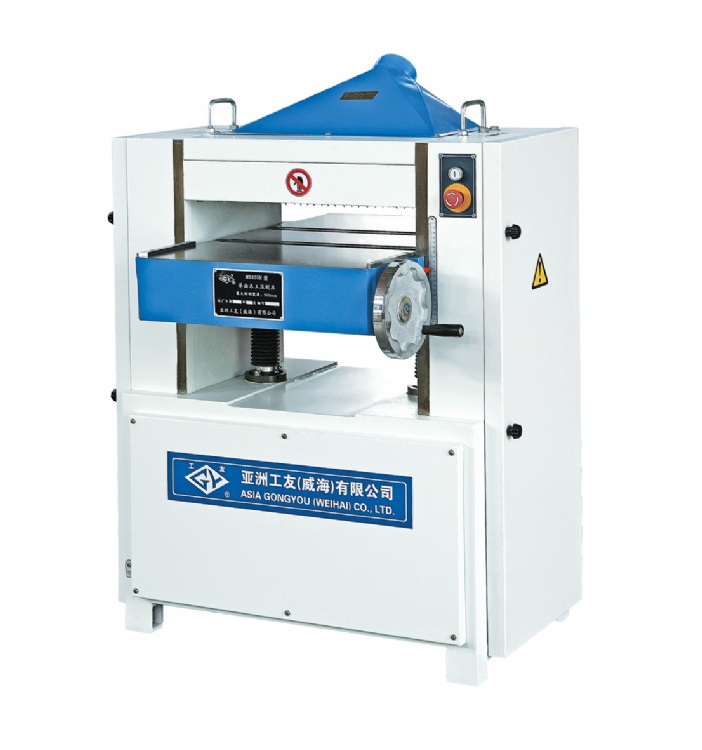

Single-Side Thicknesser
Model: MB104H MB105H MB106H MB107H
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Single Surface Planer
Characteristics
Single-Side Thicknesser
Specifications
|
MODEL |
|
MB104H |
MB105H |
MB106H |
MB107H |
|
Max. planing width |
mm |
400 |
500 |
630 |
700 |
|
Max. planing thickness |
mm |
200 |
200 |
200 |
200 |
|
Min. planing thickness |
mm |
8 |
8 |
8 |
8 |
|
Min. planing length |
mm |
220 |
220 |
220 |
220 |
|
Feeding speed |
m/min |
8;10;12 |
8;10;12 |
8;10;12 |
8;12;16 |
|
Max.planing depth |
mm |
5 |
5 |
5 |
5 |
|
Spindle speed |
r/min |
4800 |
4800 |
4800 |
4800 |
|
Blade number |
|
4 |
4 |
4 |
4 |
|
Spindle dia. |
mm |
¢105 |
¢105 |
¢105 |
¢123 |
|
Motor |
kw |
4 |
4 |
7.5 |
7.5 |
|
Dast outlet dia. |
mm |
¢100 |
¢100 |
¢100 |
¢100 |
|
Overall dimensions |
mm |
850× 830 × 1230 |
950× 830 ×1230 |
1080× 830 × 1280 |
1150× 930× 1320 |
|
Net.weight |
kg |
445 |
476 |
553 |
663 |
