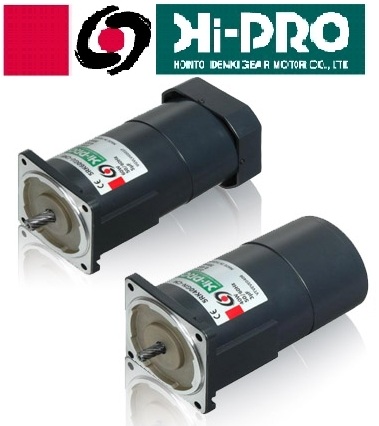

Electromagnetic Brake Motor



Model: 5RK60GU-CMF

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Pad Printing Machines



Online Inquiry





Characteristics



Still on brake when motor is off-power
◎ Output From 6W to 180w
◎ Motor still in torque when off power 　　　
◎ Speed control type motor is available
◎ Still-on-brake system is approximately at 0.3Kgcm~15Kgcm　　

Standard Electromagnetic Brake Motor type
　Item Specifications
Insulation resistance Use a DC500V high resistance gauge to measure the coil of motor and it's a outer shell when motor running in normal temperature and normal humidity, its value should be above 100MΩ .
Insulation pressure endurance Apply 60Hz, 1.5kV at the coil of motor and it's a outer shell for one minute without and extraordinary phenomenon when motor running in normal temperature and normal humidity.
Temperature arise Install two reduction gears or radiation plate of the same class at the motor. After rated running, test the coil by resistance method. Its value should be less than 80°C.
Insulation Class Class B (130°C)
Overheat protection Over heat shut down system.
Environment temperature -10°C∼+50°C
Humid around the environment Below 85% (No frosting happen)
▲ Over heat shut down system is not a standard device, please notice before order.
