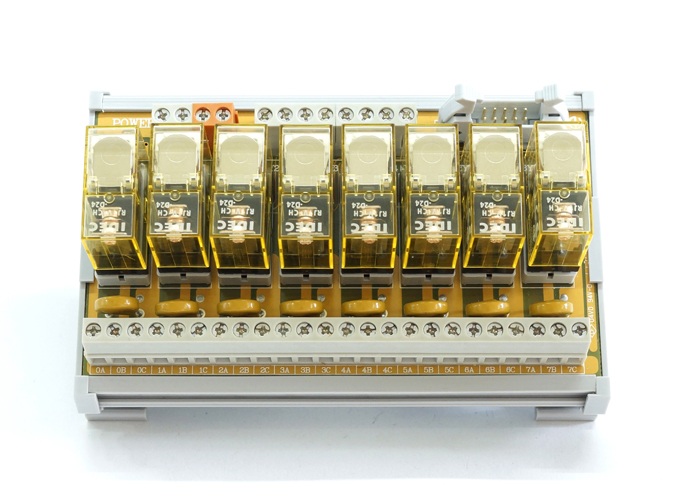

Relay Module
Model: G2R-OR08-SP-ID
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
1c contact form
European PCB terminal block
Varistor
for mating with MIL connector for output end application
Green light LED power status indicator
Red light LED output motion status indicator
NPN/PNP type of power supply for option
with IDEC RJ1V-CH DC24 relays
256mm X 121mm
Specifications
| 項目 | 規格 |
| Contact configuration : | 1c |
| Pole type : | 1 pole |
| Terminal block type : | European PCB terminal block |
| Protector : | Varistor |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Relay type : | IDEC RJ1V-CH DC24 |
| Resistive load : | 16A 250VAC, 8A 30VDC |
| inductive load : | 8A 250VAC 4A 30VDC |
| Contact max. current : | 16A |
| Contact max. voltage : | 250VAC, 125VDC |
| Dielectric strength (between coil and contact) : | 5000 VAC, for 1 min. |
| Dielectric strength (between the same polarity) : | 1000 VAC, for 1 min. |
| Machenical endurance : | AC coil: 30,000,000 operations min. DC coil: 50,000,000 operations min. (at 18,000 operation/hr) |
| Electrical endurance : | AC coil: 200,000 operations min. DC coil: 100,000 operations min. (at 1800 operation/hr) |
| Machenical max. operating frequency : | 18,000 operation/hr |
| Electrical max. operating frequency : | 1800 operation/hr (under rated load) |
