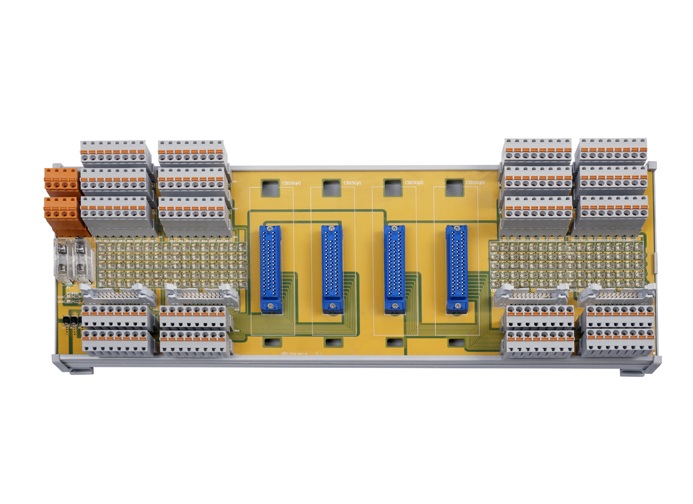

Signal Converting Module
Model: AO3B-XH50A-4
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
Double-deck PCB terminal blocks
1A fuse for power input protection
20-pin MIL connector for output application
LED green light for power status indicator
LED red light for motion status indicator
24 IN / 16 OUT terminal block for corresponding to each HONDA type connector
L380mm X W154mm
Specifications
| 項目 | 規格 |
| No of pole : | 96 IN / 64 OUT |
| Terminal block type : | Spring plugs for pluggable terminal block |
| Qty of connector for application : | 4 for HONDA type connector |
| LED power status indicator : | Green light |
| LED motion status indicator : | Orange light |
| Fuse : | 1A (for each one fuse) |
| Input voltage : | DC 24 |
| Rated current : | 1A |
| Isolation resistance : | 100MΩ |
| AWG : | 12~24 AWG |
| Connector type : | for mating with MIL connector |
