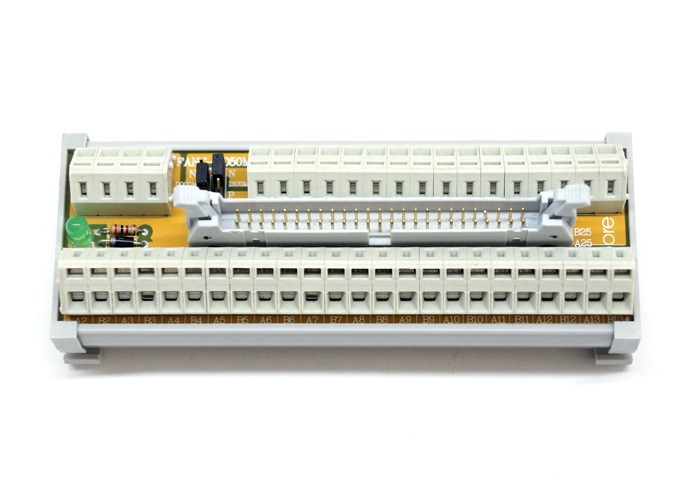

Signal Converting Module
Model: FANC-XO50MW
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
WAGO Cage clamp terminal block
LED power supply status indicator
with 50-pin MIL connector for input end application
L178mm X W48mm
Specifications
| 項目 | 規格 |
| No of pole : | 50 P |
| Terminal block type : | WAG cage clamp terminal block |
| LED power status indicator : | Green light (DIP) |
| Input voltage : | DC 24 |
| Rated current : | 1A |
| Dielectric strength : | AC500V 1min. |
| Isolation resistance : | 100MΩ |
| AWG : | 12~24 AWG |
| Connector type : | 50-pin MIL connector |
