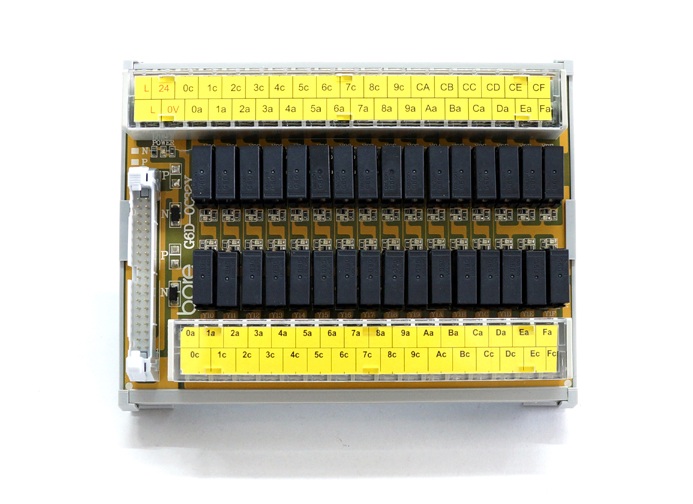

Relay Module
Model: G6D-OC32YM
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
1a contact form
Barrier terminal block
for mating with MIL connector for output end application
Green light LED power status indicator
Red light LED output motion status indicator
NPN/PNP type of power supply for option
with OMRON G6D-1A-ASI relays
154mm X 121mm
Specifications
| 項目 | 規格 |
| Contact configuration : | 1a |
| Pole type : | 1 pole |
| Terminal block type : | Barrier terminal block |
| Relay type : | G6D-1A-ASI |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Inductive load : | 2A at 250 VDC, 30VDC |
| Resistive load : | 5A at 250 VDC, 30VDC |
| Coil rated voltage : | 24 VDC |
| Coil rated current : | 8.3 mA |
| Machenical endurance : | 20,000,000 operations min. (at operating frequency of 18,000 operations/hr) |
| Electrical endurance : | 70,000 operations min. at rated loads (3000,000 operations min for 2A at 250VAC, 30VDC, resistive load) |
| Release time : | 5 ms max. |
| Operate time : | 10 ms max. |
| Max. switching capacity : | 1250 VA, 150W |
| Dielectric strength (between coil and contact) : | 3000VAC 50/60Hz for 1min |
| Dielectric strength (between contacts of the same polarity) : | 750VAC 50/60Hz for 1min |
| Connector type of 32-channel module : | 40-pin MIL connector |
