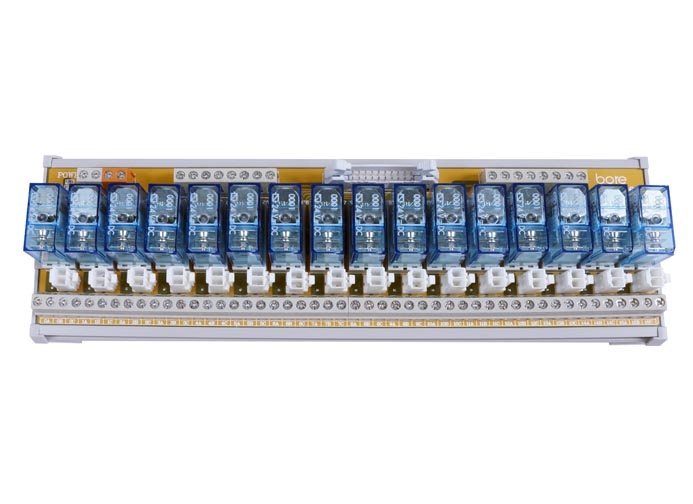

Relay Module
Model: G2R-OR16-JP-FD
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
1c contact form
European PCB terminal block
with jumper of COM contact for short circuit application
for mating with MIL connector for output end application
Green light LED power status indicator
Red light LED output motion status indicator
NPN/PNP type of power supply for option
withFinder 40.61.7.024.0000relays
248mm X 86mm
Specifications
| 項目 | 規格 |
| Contact configuration : | 1c |
| Pole type : | 1 pole |
| Terminal block type : | European PCB terminal block |
| Short circuit application : | COM contact jumper device |
| Relay type : | Finder 40.61.7.024.0000 |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Resistive load : | 5A 250VAC, 5A 30VDC |
| Contact max. rated current : | 16A |
| Contact max. rated voltage : | 250 VAC |
| Dielectric strength (between coil and contact) : | 8mm. 6kV (1.2/50 µs) isolation |
| Dielectric strength (between the same polarity) : | VAC 1000 50/60 Hz 1min. |
| Machenical endurance : | AC coil: 10,000,000 operations min. DC coil: 20,000,000 operations min. |
| Electrical endurance : | 150,000 operations min. (at rated load AC1) |
