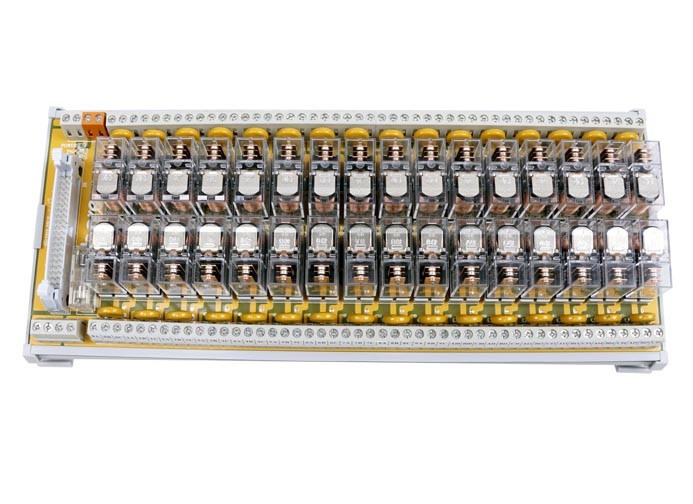

Relay Module
Model: G2R-OR32-SP
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
1c contact form
European PCB terminal block
Varistor
for mating with MIL connector for output end application
Green light LED power status indicator
Red light LED output motion status indicator
NPN/PNP type of power supply for option
with OMRON G2R-1-E relays
278mm X 121mm
Specifications
| 項目 | 規格 |
| Contact configuration : | 1c |
| Pole type : | 1 pole |
| Terminal block type : | European PCB terminal block |
| Protector : | Varistor |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Relay type : | OMRON G2R-1-E |
| Machenical endurance : | AC coil: 10,000,000 operations min. DC coil: 20,000,000 operations min. (at 18,000 operation/hr) |
| Electrical endurance : | 100,000 operations min (at 1800 operation/hr under rated load) |
| Resistive load : | 16A 250VAC 16A 30VDC |
| Inductive load : | 8A 250VAC 8A 30VDC |
| Dielectric strength (between coil and contact) : | 5000 VAC, 50/60Hz for 1 min. |
| Dielectric strength (across contacts of same poles ) : | 1000 VAC, 50/60Hz for 1 min. |
| Machenical max. operating frequency : | 18,000 operation/hr |
| Ekectrical max. operating frequency : | 1800 operation/hr (under rated load) |
| Connector type of 32-channel module : | MIL connector |
