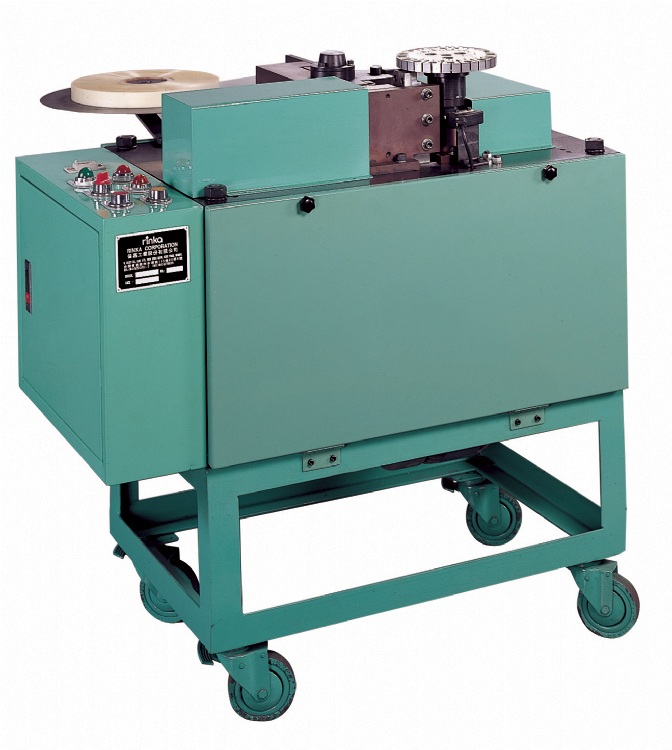

TOI-1200 CEILING FAN SLOT WEDGE INSERTING MACHINE
Model: TOI-1200 CEILING FAN SLOT WEDGE INSERTING MACHINE
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
---Application---------------
STATOR O.D：MAX. 120~160MM
STACK HEIGHT：10~40MM
NUMBER OF SLOTS：8~18 POLES
---Specifications---------------
DRIVING METHOD：AC MOTOR MOTOR：3PHASE， 0.4KW DIMENSION：900(L)×900(W)×1000(H)MM WEIGHT：300KG
---Function--------------- This machine is specially designed for slot cell or wedge paper insertion of ceiling fan stators. All procedure actions are done by the machine automatically except to put on and take off stators. The complete inserting time for 16 poles stator can be shorten to 8 sec/ stator. The production cost will be highly reduced by decreasing the material loss and labor cost. ---Features--------------
1. High insertion speed is about 0.5 sec/slot for labor saving, cost reduction, and stable quality output
2. Easy adjustment while changing stack height of stator or width of insulating paper.
3. Change tooling design to meet different shape of stator slots.
