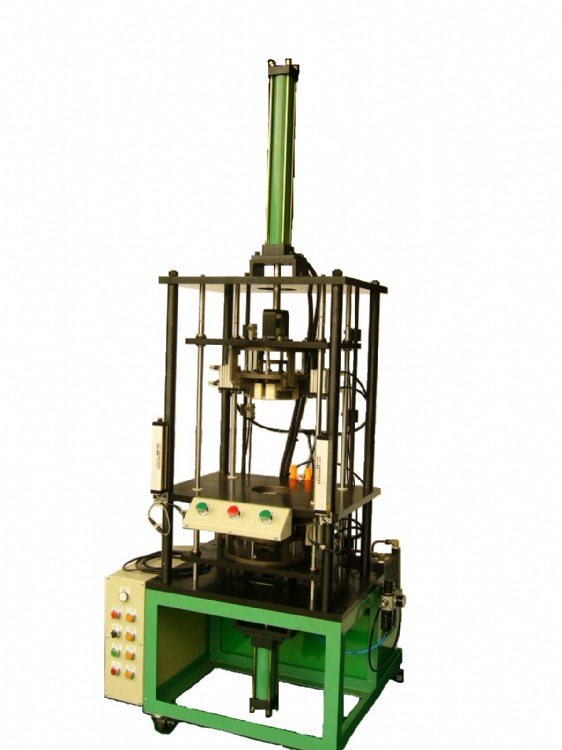

TOF-500 COIL FORMING MACHINE
Model: TOF-500 COIL FORMING MACHINE
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
---Application---------------
STATOR I.D.：45~100MM
STACK HEIGHT：MAX. 100MM
---Specifications---------------
DRIVING METHOD：HYDRAULIC
MOTOR：3PHASE 1.5KW MAX. PRESSURE:70KG/CM2
DIMENSION：1000(L)×1000(W)×2470(H)MM WEIGHT：600 KGS ---Function--------------- The machine is suitable for forming up the small to medium size stator coil. Using upper, lower and center axis molds, this machine can not only rearrange the outlook of tone coil, but also fit the sizing rearrangement, especially suitable for the difficult rearrangement of 2 poles stator.
---Features--------------
1. Vertical design minimizes the space requirement.
2. One step operation reduces moving cost.
3. Molds are applicable to different stack height of stators.
