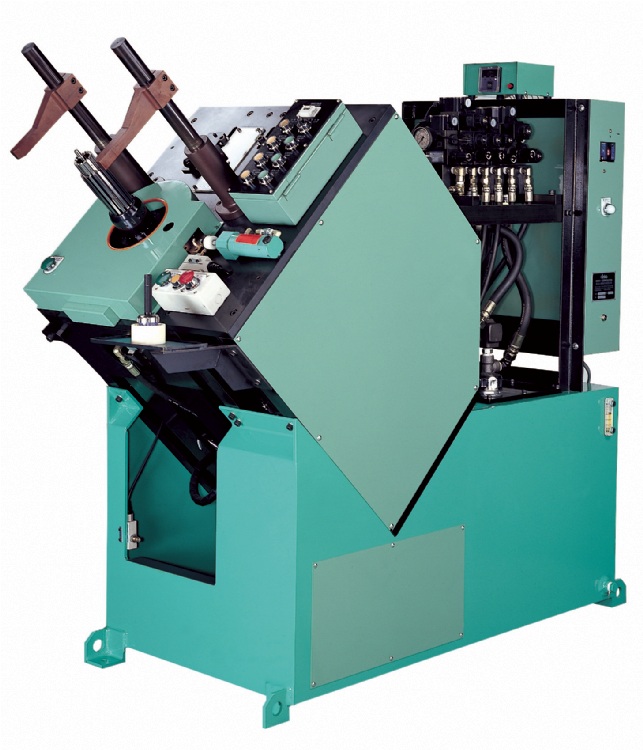

TOP-200 COIL&WEDGE INSERTING MACHINE
Model: TOP-200 COIL&WEDGE INSERTING MACHINE
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
---Application---------------
STATOR I.D.：30~100MM
STATOR O.D：MAX. 160MM
STACK HEIGHT：MAX. 120MM
NUMBER OF SLOTS：8~36 SLOTS
---Specifications---------------
DRIVING METHOD：HYDRAULIC
MOTOR：3PHASE 3 75KW DIMENSION：1700(L)×800(W)×1700(H)MM WEIGHT：1300KGS ---Function--------------- Wedge is inserted automatically in accordance with stack height of stator, and coil can be inserted automatically with one pass in compliance with specification of winding by transfer tool. It can enhance insertion efficiency highly, and reduce the production cost.
---Features--------------
1. High speed automatic insertion, labor saving, cost reduction and stable quality output.
2. Easy and quick to change tool according stack height of stator.
3. Change different tool to meet different kinds of stator.
