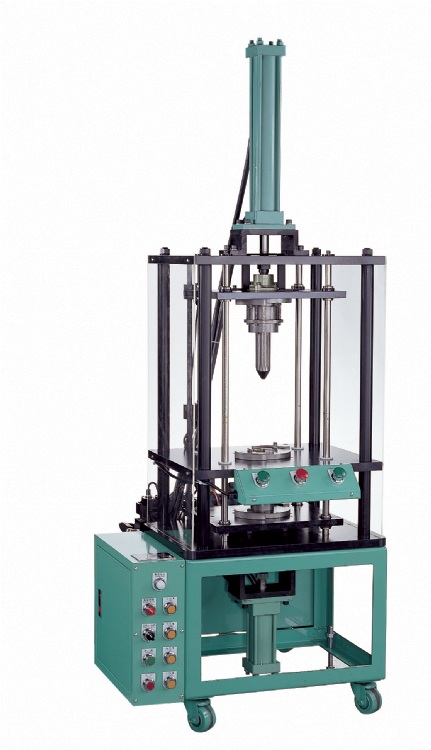

TOF-300 COIL FORMING MACHINE
Model: TOF-300 COIL FORMING MACHINE
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
---Application---------------
STATOR I.D.：30~120MM
STACK HEIGHT：MAX. 140MM
---Specifications---------------
DRIVING METHOD：HYDRAULIC
MOTOR：3PHASE 1.5KW DIMENSION：900(L)×1000(W)×2000(H)MM WEIGHT：400 KGS ---Function--------------- The machine is suitable for forming up the small to medium size stator coil. Using upper, lower and center axis molds, this machine can not only rearrange the outlook of tone coil, but also fit the sizing rearrangement, especially suitable for the difficult rearrangement of 2 poles stator.
---Features--------------
1. Vertical design minimizes the space requirement.
2. One step operation reduces removed cost.
3. Molds are applicable to different stack height of stators.
