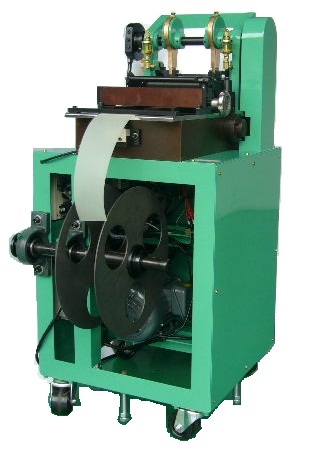

TOI-150 AUTO INSULATION PAPER CUTTING MACH
Model: TOI-150 AUTO INSULATION PAPER CUTTING MACH
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Pneumatic Automatic Machines
Characteristics
---Application---------------
1. CUTTING LENGTH: 20-160MM
2. CUTTING WIDTH: 22.1-64.2MM
3. FOLDING WIDTH: 3-5MM
4. PAPER THICKNESS: 0.19-0.25MM
5. STATOR THICKNESS: 20 ~ 150 MM
---Specifications---------------
DRIVING METHOD： MOTOR
MOTOR：1 PHASE , 1HP DIMENSION：850(L)×550(W)×1150(H)MM WEIGHT：170KGS
---Function--------------- This machine is suitable for small and medium-sized stator of the trimmer, the operator simply die adjusted to the desired length, cut to achieve the required size.
---Features---------------
1. Free to control product quantity; the best motor machine for various kinds of model with small orders.
2. High precision feeding motor, it helps to loading preciously and easy to operate the machine.
3. Insulation paper cutting by AC motor, it running peripherally and nonuser of pneumatic system and hydraulic system.
4. Automatic insulation paper detecting. Without paper, the machine will auto stop.
5. Temperature controlled in fixture to make better of insulation paper cutting process
6. Easy to adjust while changing stack height of stator.
