CNC rotation Band Sawing Machine
Model: DJ1250
Category: Machine Tools / Drilling Machines / CNC Drilling Machines
Characteristics

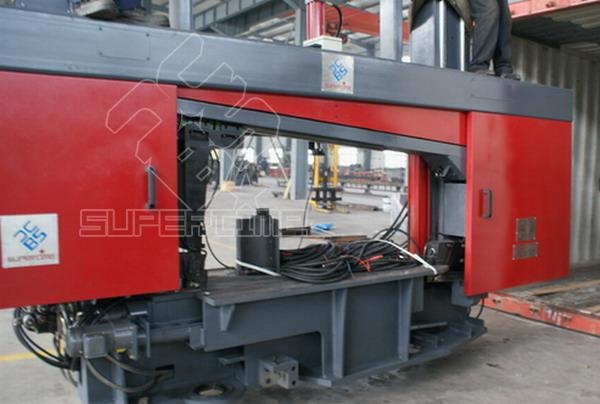

CNC rotation Band Sawing Machine Model DJ1250
A.Application
It was mainly used for cutting H Beam, Slot steel, Box beam and bar steel with characteristics of easy operation, high efficiency and strong power etc.
Specifications
CNC rotation Band Sawing Machine Model DJ1250
Parameters:
Technical parameter of I beam sawing machine
Sawing H-beam size ( without roation)
(Web height x flange width) Max. 1250 mm×600 mm
Mini 200 mm×75 mm
Saw Blade Size T:1.6mm W:67mm
Motor power Main motor 15 kW
Hydraulic pump 5.5kW Saw blade linear speed 20~100 m/min
Feeding speed 0-2 m/min software control
Rotation angle 0°~45°
Worktable Height About 800 mm
