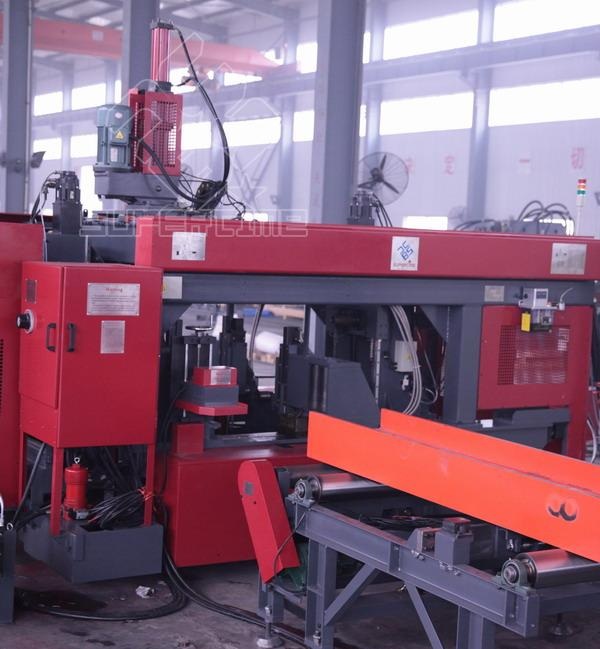

CNC H beam drilling machine
Model: SWZ1250
Category: Machine Tools / Metal Forming Machine Tools / Shearing Machines
Characteristics
CNC H beam drilling machine
1) high precision positioning , dolly feeding driven by servo motor
2) 3D drilling line machine
3) Composed one CNC beam line together with CNC band saw machine
Specifications
CNC H beam drilling machine
Parameters:
Name Unit Parameter Remark
Range of workpiece
H beam mm 150x80~1250x600
U beam mm 150x80~1250x300
Box beam mm 150x80~1250x300
Thickness mm ≤80
Length m Standard 15 By client request
Short material restrictions mm Automatic process≥3000
Manual process:690~3000
Drill power box number piece 3
Range of diameter mm 5~40
rotation of spindle r/min 30~2000
Taper of spindle M4
motor power of spindle KW 3×11
CNC beam 3D drilling machine SWZ1250,SWZ1000 etc.
