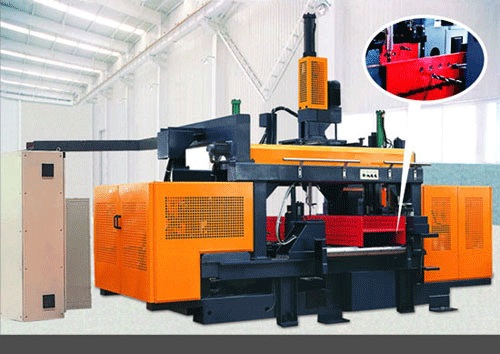

SWZ1500 CNC beam drilling line
Model: SWZ1500
Category: Machine Tools / Drilling Machines / CNC Drilling Machines
Characteristics
SWZ1500 CNC beam drilling line
For 1500x800 mm steel beam structure
Specifications
SWZ1500 CNC beam drilling line
Technical parameter for reference
Name Unit Parameter Remark
Range of workpiece H beam mm 150x80~1500x800
U beam mm 150x80~1500x400
Box beam mm 150x80~1500x400
Thickness mm ≤50
Length m Standard 15 By client request
Drill power box number piece 3
Range of diameter mm 5~36
rotation of spindle r/min 30~1500
Taper of spindle M4
motor power of spindle KW 3×7.5
Application :
widely used in buildings, bridges, power station boilers, parking, offshore oil wells platform, tower mast and other steel industry, especially for the H-beam steel and channel beam processing, with high precision, operate easily, which is essential machine to steel structure industries.
