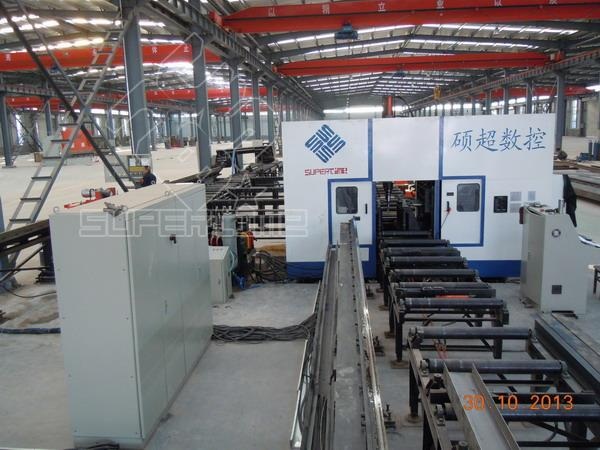

Multi spindle beam drilling line
Model: SWZ700/9
Category: Machine Tools / Drilling Machines / Multi-Spindle Drilling Machines
Characteristics
SWZ700/9
Multi spindle beam drilling line
Specifications
Technical Specification of SWZ700D
Name Unit Specifications workpiece
Max. width mm700
Min. width mm 100
Max. height mm 400
Min. height mm 50
Min. length of workpiece mm 1800
Max. weight of workpiece kg 5000
spindle No. of Spindles piece3
Rotation speed of spindle r/min 180 ~ 560
Feeding movement speed 20 ~ 300
Stroke of each spindle mm 280
Drilling diameter mm 12.5 ~30
Power of each spindle kW 4
Stroke of mean line
Top unit Z direction (horizontal) mm 40 ~ 620
left side X direction (vertical) mm 30~380
Right side Y direction (vertical) mm 30~380
Type Taper module 3#
Morse taper 2#,3#
Clamp workpiece
horizontal clamping force kN 15.7
Vertical clamping force kN 6.4
